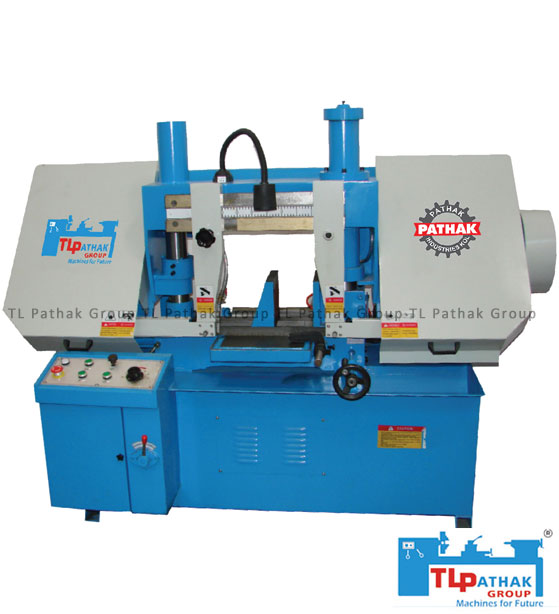

Double Column Full Automatic Bandsaw Machine

Cutting Machines

We have been able to manufacture, export, and supply a wide range of double column full automatic band saw machines owing to the expertise of our professionals. Our machine is fully productive and is very much affordable. We will give you the machine with complete electrical pieces of equipment including panel board, limit switch, and electrical motors.

From ₹
225,000

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
MODEL AC-250 AC-300 AC-350 AC-425 AC-530
Cutting Capacity Round (mm) 250 300 350 425 530
Cutting Capacity Square (mm) 250 x 250 300 x 300 300 x 350 425 x 425 530 x 530
Blade Dimension 3760 x 27 x 0.90 4100 x 34 x 1.10 300 x 350 4860 x 41 x 1.30 5800 x 54 x 1.30
Blade Speed 20-40-60 20-40-60 20-40-60 20-40-60 20-40-60
Power Required Kw/
HP 440 V AC 50 Hz 3 Phase
Saw Drive 1.50 / 2.00 2.20 / 3.00 3.70 / 5.00 5.50 / 7.50 7.50 / 10.00
Hyd. Drive 0.75 / 1.00 0.75 / 1.00 0.75 / 1.00 0.75 / 1.00 0.75 / 1.00
Coolant Pump 0.12 / 0.16 0.12 / 0.16 0.12 / 0.16 0.12 / 0.16 0.12 / 0.16
Hyd. Tank Litre 40 50 60 60 60
Coolant Tank Litre 60 60 60 60 60
MODEL AC-650 AC-800 AC-1000 AC-1250 AC-1500
Cutting Capacity Round (mm) 650 800 1000 1250 1500
Cutting Capacity Square (mm) 650 x 650 800 x 800 1000 x 1000 1250 x 1250 1500 x 1500
Blade Dimension 6900 x 54 x 1.60 8000 x 67 x 1.60 8800 x 67 x 1.60 12300 x 80 x 1.60 13100 x 80 x 1.60
Blade Speed 20-40-60 20-40-60 20-40-60 20-40-60 20-40-60
Power Required Kw /
HP 440 V AC 50 Hz 3 Phase
Saw Drive 9.30 / 12.50 15.00 / 20.00 15.00 / 20.00 15.00 / 20.00 15.00 / 20.00
Hyd. Drive 1.50 / 2.00 1.50 / 2. 00 2.25 / 3.00 2.25 / 3.00 2.25 / 3.00
Coolant Pump 0.12 / 0.16 0.12 / 0.16 0.12 / 0.16 0.12 / 0.16 0.12 / 0.16
Hyd. Tank Litre 80 80 130 130 130
Coolant Tank Litre 80 80 130 130 130
