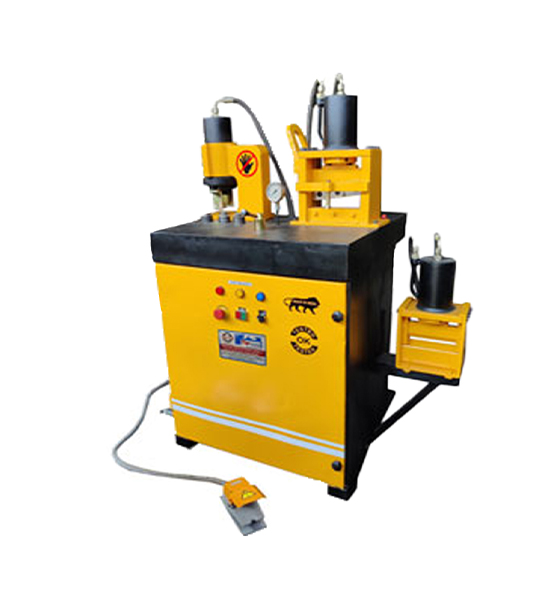

Multifunction 3 in 1 Busbar machine
Busbar MachineThe multifunction 3 in 1 busbar machine offered by TL Pathak Group is a highly efficient and versatile piece of equipment designed to streamline the process of busbar fabrication. This machine is capable of punching, cutting, and bending copper or aluminum busbars, providing an all-in-one solution that eliminates the need for multiple machines.
With a compact design and user-friendly interface, the 3 in 1 busbar machine is easy to operate and can be used to produce high-quality busbars with speed and precision. The machine is equipped with advanced hydraulic and electrical components, ensuring consistent performance and minimal downtime.
In addition to its multifunction capabilities, the 3 in 1 busbar machine is also highly adaptable, with a range of accessories and customization options available to meet the specific needs of different applications. It is suitable for use in a wide range of industries, including electrical engineering, switchgear manufacturing, and panel building.
Overall, the multifunction 3 in 1 busbar machine from TL Pathak Group is a reliable, efficient, and versatile solution for busbar fabrication, offering high-quality results and maximum productivity.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackPunching | INDIE 70 |
Punching capacity of copper row/aluminum row | |
200*12mm (width thickness) punching mold (mm) | 010.5 013.8 017.5 020.5 |
Punching Force | 35T |
Cutting | CWC-200 |
cutting capacity of copper row/aluminum row | |
200*12mm(width thickness) Cutting Force | 20T |
Bending | 200A |
Bending capacity of copper row/aluminum row | |
200*12mm (width thickness) Bending Force | 20T |
Motor Power | 0.75KW |
Voltage | 220V 50Hz |
Table size : (mm) | 700(L)*700(W)*850(H) |
Oil delivery | low2 5L/min, high 0.9L/min |
Pressure rating | low 0-20, high 20 700kgf cm |
Weight | 207kg |
Packing | wooden box tray packaging |
Dimension (mm) | 750*960*1220mm |
