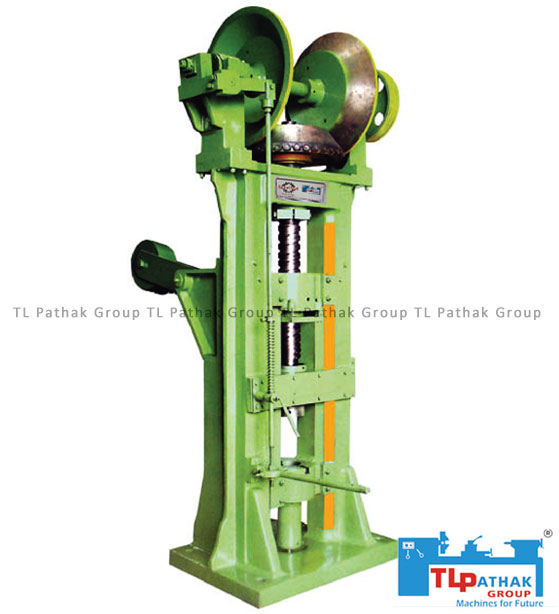

Friction Screw Press Up Stroke
Press MachinesPathak is a leading brand manufacturing the best quality Friction Screw. Press Upstroke is designed with steel body construction and is mainly designed to forge long bolts-head, axle shaft, nuts of various kinds available with an electric press that directly drives the flywheel with a motor. The machine is available with the latest technology under the supervision of our skilled technical team.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackType | Nominal Capacity |
Dia of Screw | Stroke | Slide Table | Places/Hour | Max.Dia of Bolt capacity Forging | Max.Length of bolt capable forging | Foundation | Pulley Size | Power Required/H.P.(Approx.)Motor R.P.M. |
Tons | mm/inch | mm/inch | mm/inch | - |
mm/inch |
mm/inch | mm/inch | mm/inch | H.P./R.P.M | |
VFP | 50 | 85/3-1/4 | 300/12 | 200/8 | 800-1200 | 12/-1/2 | 250/10 | 840-585 | 100/4B | 3/1440 |
VFP | 100 | 110/4-1/4 | 400/16 | 225/9 | 600-1000 | 20/-3/4 | 300/12 | 930x610 | 100/4B | 7.5/1440 |
VFP | 125 | 115/5-1/4 | 450/18 | 225/9 | 500-900 | 22/-7/8 | 400/16 | 940x710 | 100/4B | 10/1440 |
VFP | 150 | 130/5-1/8 | 500/20 | 250/10 | 400-700 | 32/1-1/4 | 450/18 | 1080x750 | 125/5C | 15/1440 |
VFP | 200 | 135/5-3/8 | 550/22 | 275/11 | 300-600 | 38/1-1/2 | 500/20 | 1115x790 | 125/5C | 20/1440 |
VFP | 300 | 155/6-1/8 | 600/24 | 275/11 | 200-500 | 50/2 | 600/24 | 1200x860 | 200/8C | 25/960 |
VFP | 400 | 175/7 | 650/26 | 300/12 | 150-300 | 63/2-1/2 | 650/26 | 1320x1000 | 200/8C | 30/960 |
VFP | 500 | 200/8 | 700/28 | 335/13 | 80-250 | 75/3 | 700/28 | 1470x1050 | 200/8C | 40/960 |
VFP | 630 | 225/9 | 760/30 | 355/14 | 70-225 | 90/3-1/2 | 760/30 | 1525x1100 | 200/8C | 50/960 |
VFP | 800 | 250/10 | 810/32 | 380/15 | 60-200 | 100/4 | 810/32 | 1600x1150 | 200/8C | 60/960 |
VFP | 1000 | 275/11 | 865/34 | 405/16 | 50-150 | 115/4-1/2 | 860/34 | 1750x1250 | 200/8C | 70/960 |
