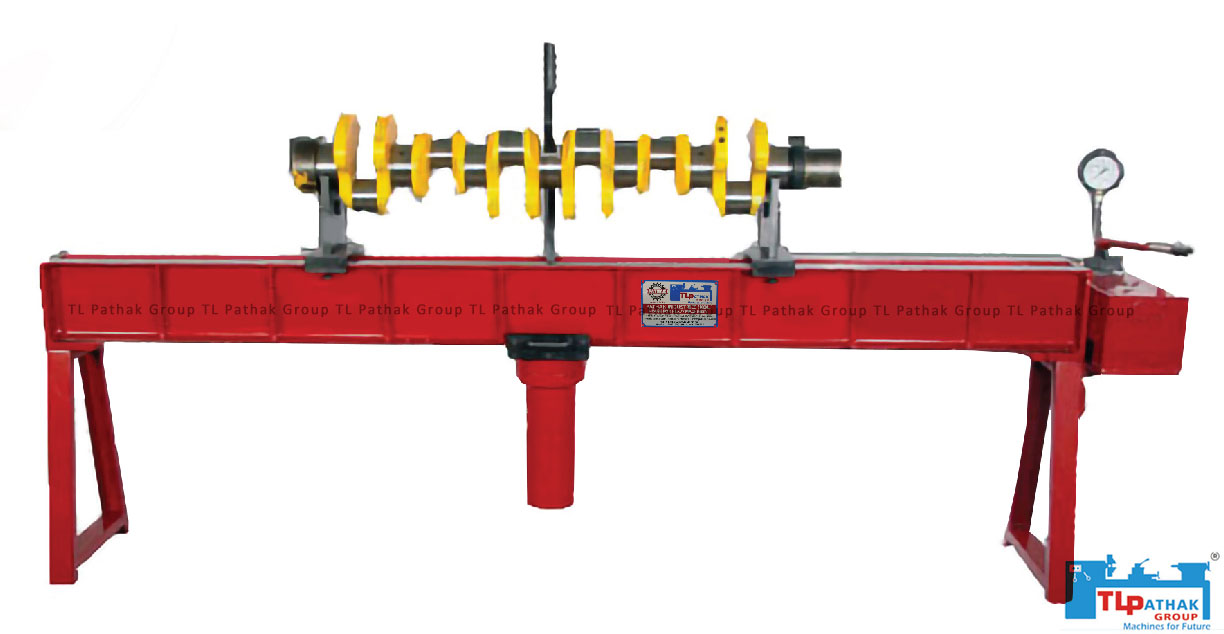

Crankshaft Straightening Press
Garage MachinesPathak is a leading brand manufacturing the best quality Crankshaft straightening press mainly used to straighten crankshafts at the seat of misshaping made with the latest technology and premium quality raw material used to provide efficiency in work long functional life to the machine and its body structure provides durability to the buyer. It has all the necessary features required by a buyer.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL | CSP 3000 | CSP 2000 |
| Maximum Distance Between 'V' Block | 2900 MM | 1900 MM |
| Minimum Distance Between 'V' Block | 250 MM | 250 MM |
| Maximum Journal Diameter | 130 MM | 100 MM |
| Height of 'V' Block From Bed | 250 MM | 250 MM |
| Hydraulic Pump Capacity | 25 TON | 15 TON |
| Length of The Machine | 3300 MM | 2300 MM |
| Width of The Machine | 500 MM | 500 MM |
| Height of The Machine | 950 MM | 900 MM |
| Net Weight (Approx) | 330 MM | 280 KG |
| Gross Weight (Approx) | 500 MM | 450 KG |
| Shipping Volume | 33 | 2 M3 |
| Packing Case Size (L X W X H) | 3550 MM X 750 MM X 1150 MM | 2550 MM X 750 MM X 1100 MM |
MODEL |
CSP 3000 |
CSP 2000 |
| Clamp Adjusting Block | 2 NOS | 2 NOS |
| Dial Guage With Stand | 1 NO | 1 NO |
