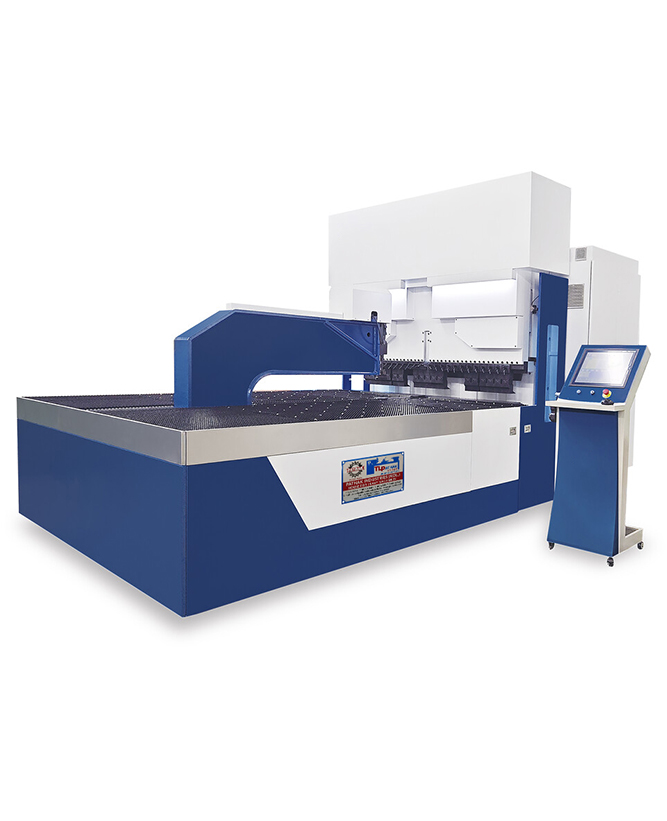

CNC Panel Bending Machine
Sheet Metal MachinesThe CNC Panel Bending Machine by TL Pathak Group revolutionizes metal fabrication with precision and efficiency. This cutting-edge machine employs computer numerical control (CNC) technology to precisely manipulate metal sheets, enhancing productivity and quality. Its advanced features include programmable bending sequences, allowing for intricate designs and complex shapes with utmost accuracy. Equipped with intuitive controls, operators can easily input specifications, minimizing setup time and maximizing production output. The machine's robust construction ensures durability and reliability, making it ideal for high-volume manufacturing environments. Additionally, safety features such as protective enclosures and emergency stop mechanisms prioritize operator well-being. With its versatility and performance, the CNC Panel Bending Machine from TL Pathak Group sets new standards in metalworking, empowering businesses to meet demanding production requirements while maintaining exceptional quality standards.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | Diagonal Length of Sheet | Max Folding | Max Folding Height | Max Sheet Thickness in Mild Steel 410 N/m mA2 | Max Sheet Thickness in Mild Steel 660 N/m mA2 | Max Sheet Thickness in Ai Alloy 265 N/m mA2 | Min. Sheet Thickness | Servo Axis | Total Power | Dimensions | Machine Weight |
TLPCPB 1216 | 1600 mm | 1250 mm | 165 mm | 1.2 | 0.8 | 2.0 | 0.5 | 9 | 15 KW | 3200x2200x2450 | 9500 kg |
TLPCPB 1516 | 1850 mm | 1500 mm | 165 mm | 1.2 | 0.8 | 2.0 | 0.5 | 13 | 20 KW | 4300x2300x2450 | 10000 kg |
TLPCPB 1530 | 1850 mm | 1530 mm | 165 mm | 1.2 | 0.8 | 2.0 | 0.5 | 13 | 20 KW | 4300x2300x2600 | 10000 kg |
TLPCPB 2016 | 2400 mm | 2000 mm | 165 mm | 2 | 1.2 | 3 | 0.5 | 13 | 30 KW | 4500x2800x2800 | 14000 kg |
TLPCPB 2516 | 2800 mm | 2500 mm | 165 mm | 2 | 1.2 | 3 | 0.5 | 13 | 35 KW | 5400x3500x2900 | 18800 kg |
TLPCPB 3016 | 3400 mm | 3000 mm | 165 mm | 1.5 | 1 | 2.5 | 0.5 | 14 | 45 KW | 6500x4000x3000 | 22400 kg |
TLPCPB 3016 | 4250 mm | 4000 mm | 165 mm | 2 | 1.2 | 3 | 0.5 | 16 | 60 KW | 7500x5200x3100 | 28500 kg |
