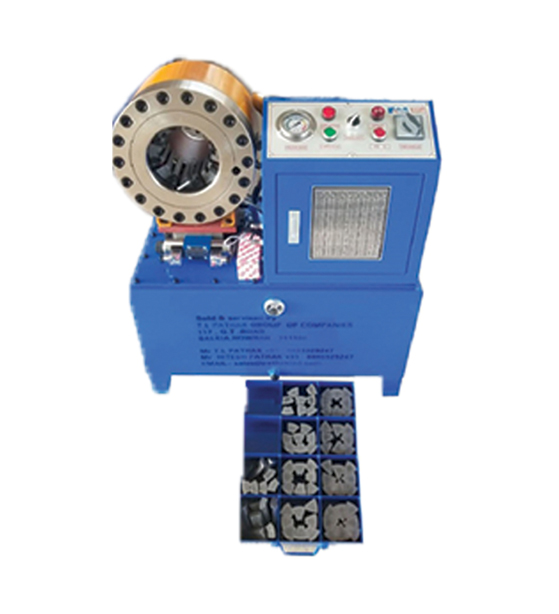

Hydraulic Hose Crimping Machine PHC 2
Hose Crimping machinesPathak Hose Crimping Machine is a pivotal part of any hose gathering. When you have liquids or gases in movement over expanded time frames, the crimp must be perfect generally there is a ton that can turn out badly.
From ₹
265,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Crimping Capacity of 2 wire hose | 2 inches |
| Crimping Capacity of 4 wire hose | 1 inches |
| Opening at Front side | 155 mm |
| Maximum inside opening without dies | 115 mm |
| Opening at Rear end | 130 mm |
| Maximum working pressure | 315 Bar |
| Kilowatt of motor | 3.75 KW, 5 HP |
| Voltage | 220V/415 V |
| Capacity of oil tank | 50 Litres |
| Number of dies | 10 |
| Sizes of dies | 15, 19, 23, 26, 30, 34, 38, 45, 52, 62 |
| Noise level | <75db |
| Weight of the machine | 250 Kg |
| Dimensions of machine (L X B X H) | 665 x 525 x 800 mm |
| Dimensions of Export packing (wooden box) | 720 x 575 X 870 mm |
