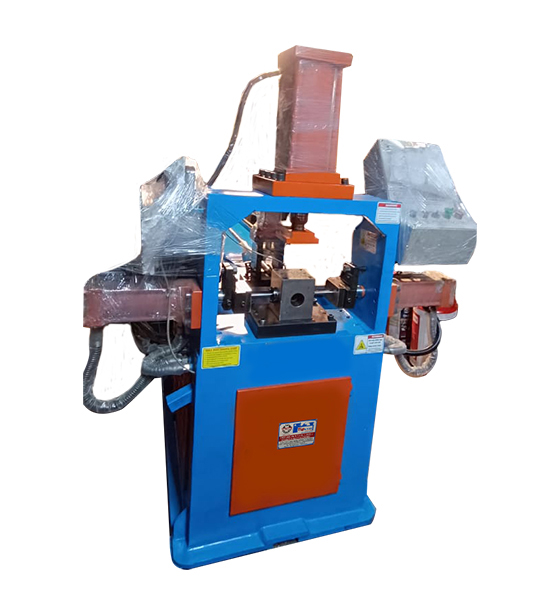

Automatic Slotted Channel Punching Machine
Special Purpose Machines (SPM'S)The Automatic Slotted Channel Punching Machine by TL Pathak Group is a cutting-edge solution for efficiently punching slots in metal channels. With precision engineering and advanced automation, this machine streamlines the fabrication process, enhancing productivity and accuracy in manufacturing tasks. Designed to meet industrial demands, it boasts robust construction and user-friendly controls, ensuring seamless operation and durability. Equipped with cutting-edge technology, it offers versatility in slot dimensions and configurations, accommodating various channel sizes and requirements. Its automated features reduce manual labor and minimize downtime, optimizing production efficiency. From electrical enclosures to construction frameworks, this machine caters to diverse applications across industries, providing cost-effective and reliable solutions for metal fabrication needs. Experience enhanced efficiency and precision with the Automatic Slotted Channel Punching Machine from TL Pathak Group, revolutionizing metalworking processes with innovation and excellence.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel Name | TLPASP |
Body | Mild Steel Fabricated |
Electric Control | with PLC Mitsubishi Make |
Accuracy | +-0.10 mm |
Hydraulic Valve | Yuken Brand |
Oil Pump | Hydraulic power pack build with double Pump |
Electric Motor | 7.5 H.P. Crompton Make |
Saving Program | 100 + |
Maximum Angle Length | 6500 mm |
Punching Capacity | 6x65x65 mm |
Hydraulic Tank | 150 lit. (Without Oil) |
Electric Panel | 2 Nos. |
Cycle Time | 3 sec per hole including feed |
Pipe Clamping | By Hydraulic Cylinder |
Gear Box | Servo Motor 1 K.W. Planetory Gear Box |
HMI | Touch Screen 7” Mitsubishi or Fuji Make |
