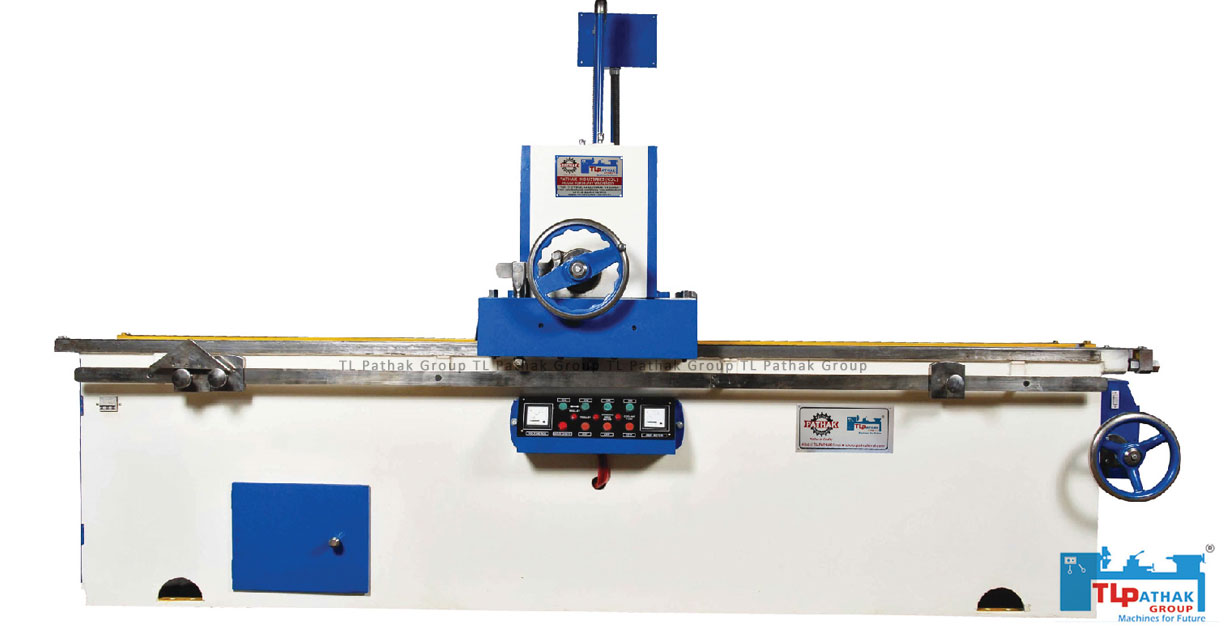

Knife Grinding Machine
Grinding MachinesT.L Pathak Group Leading is the Manufacturer and Exporters of Knife Grinding Machines. Its standard accessories are Motor panel board, swiveling table (clamping type), one set of grinding wheels with grinding segments fitted on the machine, coolant pump, water tanks, tools. The optional Accessories are the Cup Wheel for grinding instead of standard grinding wheel with grinding segments.
Standard Accessories:
Motor panel board, swiveling table (clamping type), one set of grinding wheel with grinding segments fitted on the machine, coolant pump, water tanks, tools. Etc.
Optional Accessories
Cup Wheel for grinding instead of standard grinding wheel with grinding segments.
From ₹
1,050,000
To
1,850,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODELS | Length & Width of Electro-Magnetic Table | Grinding Width Clearance | Grinding Wheel Diameter | Electric Motors | Approximate Shipping Volume |
| PKG-60/6 | 60'' x 6'' (1550 x 150 mm) | 6'' | 10'' | 7.5 HP & 0.5 HP | 7.5 m |
| PKG-60/8 | 60'' x 8'' (1550 x 200 mm) | 8'' | 12'' | 10 HP & 0.5 HP | 7.5 m |
| PKG-72/6 | 72'' x 6'' (1850 x 150 mm) | 6'' | 10'' | 7.5 HP & 0.5 HP | 8.5 m |
| PKG-72/8 | 72'' x 8'' (1850 x 200 mm) | 8'' | 12'' | 10 HP & 1 HP | 8.5 m |
| PKG-84/8 | 84'' x 8'' (2150 x 200 mm) | 8'' | 12'' | 10 HP & 1 HP | 9.0 m |
| PKG-84/10 | 84'' x 10'' (2150 x 250 mm) | 10'' | 14'' | 15 HP & 2 HP | 9.0 m |
| PKG-100/8 | 100'' x 8'' (2550 x 200 mm) | 8'' | 12'' | 10 HP & 1 HP | 12.0 m |
| PKG-100/10 | 100'' x 10'' (2550 x 250 mm) | 10'' | 14'' | 15 HP & 2 HP | 12.0 m |
| PKG-120/8 | 120'' x 8'' (3100 x 200 mm) | 8'' | 12'' | 10 HP & 1 HP | 16.5 m |
| PKG-120/10 | 120'' x 10'' (3100 x 250 mm) | 10'' | 14'' | 15 HP & 2 HP | 16.5 m |
| PKG-120/12 | 120'' x 12'' (3100 x 300 mm) | 10'' | 14'' | 15 HP & 2 HP | 16.5 m |
| PKG-156/8 | 156'' x 8'' ( 4000 x 200 mm) | 8'' | 12'' | 10 HP & 2 HP | 23.0 m |
| PKG-156/10 | 156'' x 10'' (4000 x 250 mm) | 10'' | 14'' | 15 HP & 2 HP | 23.0 m |
| PKG-156/12 | 156'' x 12'' (4000 x 300 mm) | 10'' | 14'' | 15 HP & 2 HP | 23.0 m |
| PKG-180/10 | 180'' x 8'' (4600 x 250 mm) | 12'' | 18'' | 20 HP & 3 HP | 28.0 m |
| PKG-180/12 | 180'' x 10'' (4600 x 300 mm) | 12'' | 18'' | 20 HP & 3 HP | 28.0 m |
| PKG-180/14 | 180'' x 12'' (4600 x 350 mm) | 12'' | 18'' | 20 HP & 3 HP | 28.0 m |
