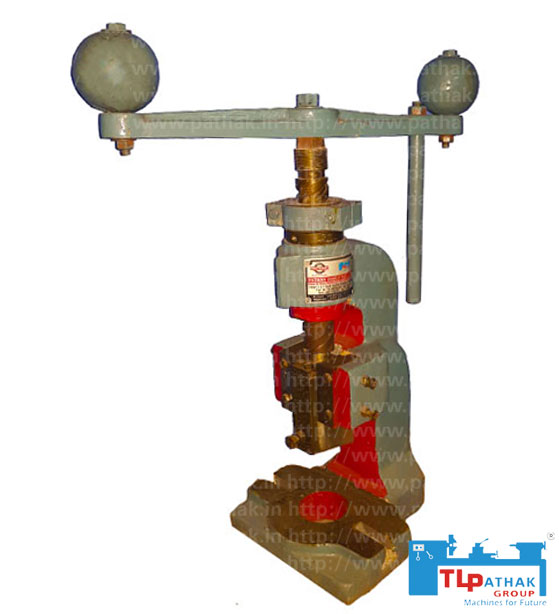

Single Sided Fly Press
Press MachinesProviding the best quality Single-Sided Fly Press with a wide range mainly used to shape metal by deforming it and for metal cutting, embossing, mini slotting. It's straightforward to use this machine, and our team made it for you with the latest technology that provides durability. Our qualitative machine provides smooth functioning and long life.
From ₹
25,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Single Sided Fly Press | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||||||||
| No. Size | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| Base of Guide | 9 | 114 | 5 | 127 | 5 3/4 | 146 | 146 | 171 | 7 1/4 | 184 | 8 | 204 | 9 | 229 | 11 | 279 |
| Centre to Back | 3 | 76 | 3 | 76 | 3 3/4 | 95 | 4 1/2 | 114 | 4 1/4 | 110 | 5 1/4 | 133 | 6 | 152 | 8 | 203 |
| Diameter of Screw | 3 1/6 | 37 | 1 11/13 | 43 | 1 1/16 | 43 | 1 13/16 | 46 | 1 3/8 | 48 | 1 7/8 | 48 | 2 3/8 | 60 | 3 | 76 |
| Hole through base (without ring) | 1 3/4 | 32 | 1 3/4 | 44 | 1 3/4 | 44 | 3 | 76 | 3 1/2 | 89 | 4 | 102 | 4 1/2 | 114 | 6 | 152 |
| Hole through base (wiithout ring) | 1 1/2 | 38 | 1 3/4 | 44 | 2 | 51 | 2 1/4 | 57 | 3 | 76 | ||||||
| Stroke | 3 | 76 | 4 | 102 | 4 1/2 | 114 | 4 1/2 | 114 | 5 1/2 | 139 | 5 3/4 | 148 | 6 | 152 | 8 | 203 |
| Hole In Ram (Dia) | 3/4 | 19 | 1 | 25 | 1 | 25 | 1 | 25 | 1 | 25 | 1 | 25 | 1 | 25 | 1 1/4 | 32 |
| Hole in Ram (Depth) | 1 1/2 | 38 | 1 1/2 | 38 | 1 1/2 | 38 | 1 1/2 | 38 | 1 1/2 | 38 | 1 1/2 | 38 | 2 | 51 | 2 1/2 | 64 |
| Diameter of Fly Wheel | 18 | 229 | 18 | 229 | 19 3/4 | 260 | 21 | 536 | 23 | 587 | 23 | 587 | 29 | 739 | 32 | 813 |
| Height of the body | 19 1/4 | 484 | 19 1/2 | 484 | 21 1/2 | 546 | 24 3/4 | 631 | 26 1/4 | 682 | 28 1/4 | 733 | 33 1/4 | 847 | 40 | 1016 |
| Total weight of Machine | 35 KG | 78 KG | 100 KG | 140 KG | 170 KG | 200 KG | 300 KG | 550 KG | ||||||||
