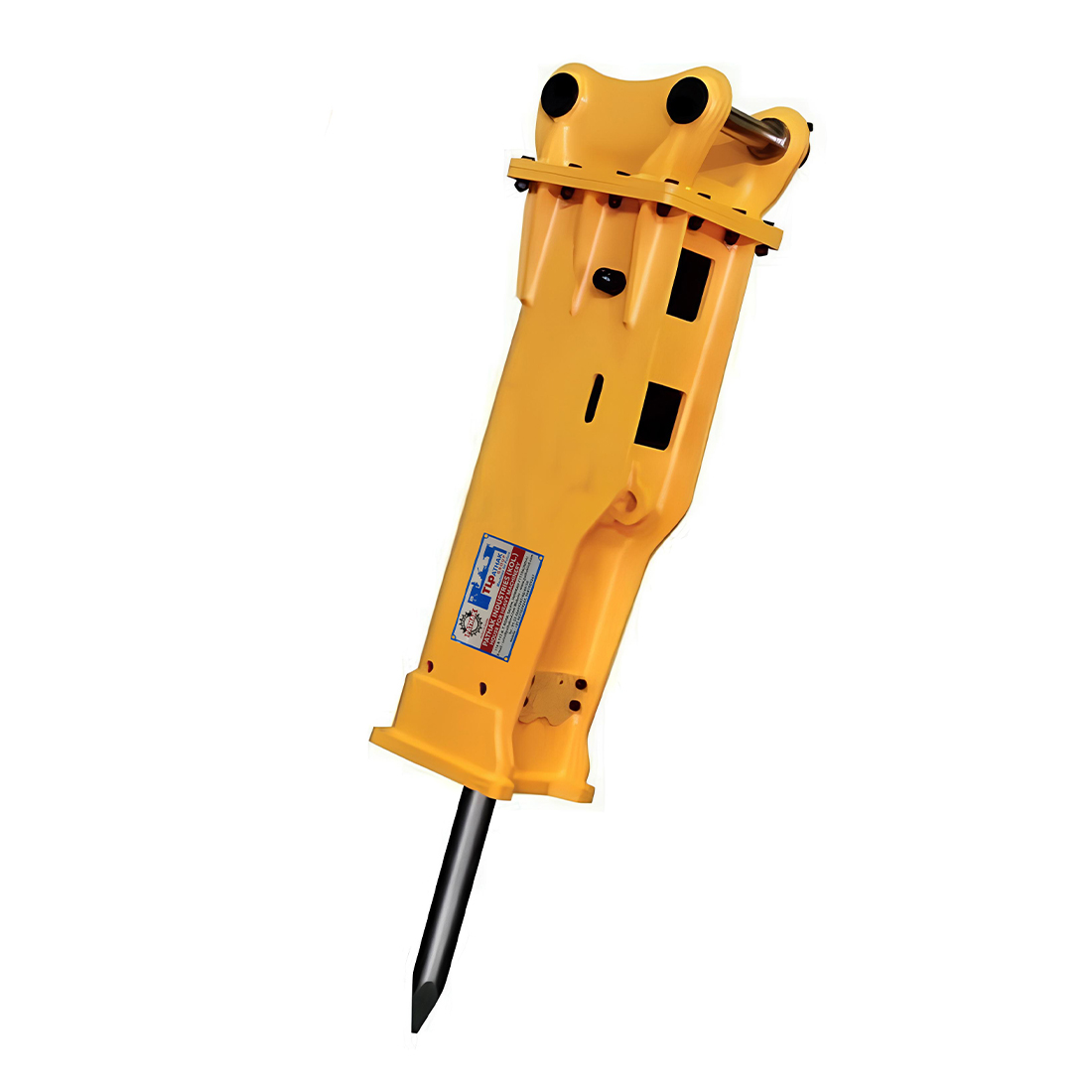

Hydraulic Rock Breaker
Special Purpose Machines (SPM'S)TL Pathak Group's Hydraulic Rock Breaker is a powerful and reliable solution for breaking and demolishing rocks in construction and mining applications. This high-performance attachment is meticulously engineered to deliver exceptional impact force, ensuring efficient rock fragmentation. With advanced hydraulic technology, it provides precise control and versatility in various challenging environments. The breaker's robust design and durable components enhance its longevity, reducing maintenance costs for operators. TL Pathak Group prioritizes safety, and their Hydraulic Rock Breaker incorporates safety features for secure operation. This equipment is an indispensable tool for contractors and industries requiring efficient rock-breaking capabilities, offering a combination of power, precision, and durability for optimal performance in demanding projects.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPHRB-4 | TLPHRB-6 | TLPHRB-11 | TLPHRB-18 | TLPHRB-20 | TLPHRB-28 |
| Applicable Excavator | 4-7 Ton | 6-9 Ton | 11-15 Ton | 18-21 Ton | 20-26 Ton | 28-35 Ton |
| Operating Weight | 354 kg | 448 kg | 924 kg | 1632 kg | 1863 kg | 2533 kg |
| Main Body Weight | 151 kg | 210 kg | 422 kg | 643 kg | 782 kg | 1100 kg |
| Height | 1640 mm | 1888 mm | 2337 mm | 2865 mm | 2907 mm | 3317 mm |
| Width | 430 mm | 450 mm | 570 mm | 720 mm | 730 mm | 837 mm |
| Required Oil Flow | 40-70 l/min | 50-90 l/min | 80-110 l/min | 100-150 l/min | 120-180 l/min | 180-240 l/min |
| Set Pressure | 170 Bar | 180 Bar | 210 Bar | 230 Bar | 220 Bar | 240 Bar |
| Operating Pressure | 110-140 Bar | 120-150 Bar | 150-170 Bar | 160-180 Bar | 160-180 Bar | 160-180 Bar |
| Impact Rate | 500-900 BPM | 400-800 BPM | 350-700 BPM | 350-600 BPM | 350-500 BPM | 350-450 BPM |
| Chisel Diameter | 68 mm | 75 mm | 100 mm | 135 mm | 140 mm | 155 mm |
| Chisel Length | 700 mm | 750 mm | 1000 mm | 1200 mm | 1300 mm | 1500 mm |
| Impact Energy | 70 kg l-min | 92 kg l-min | 214 kg l-min | 363 kg l-min | 429 kg l-min | 663 kg l-min |
| Hose Diameter | 0.5" | 0.5" | 0.75" | 1" | 1" | 1.25" |
