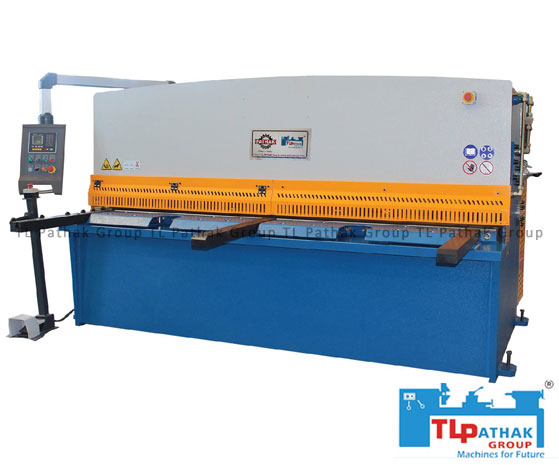

CNC NC Shearing Machine
Sheet Metal MachinesT.L Pathak Leading Manufacturer of CNC / NC Shearing Machine. Machine Have Blade Clearance Adjustment, Yuken Polyhydron Hydraulic System, Backguage (High Accuracy), Digital Touch Display Controller Features.
From ₹
2,687,000
To
6,878,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | Thickness MM | Width MM | Cutting MM | Material Intension KN/CM | Rear Stopper Adjustment MM | Travel Times / MM | Hold Downs PCS | Main Power KW | Weight KG | Overall Dimension (LXWXH) MM |
CNHC-4X2500 | 4 | 2500 | 1/30' | <450 | 20-500 | 10 | 12 | 5.5 | 3800 | 3040X1610X1620 |
CNHC-4X3200 | 4 | 3200 | 1/30' | <450 | 20-500 | 10 | 14 | 5.5 | 5000 | 3840X1610X1620 |
CNHC-4X4000 | 4 | 4000 | 1/30' | <450 | 20-750 | 8 | 16 | 5.5 | 6500 | 4600X1700X1700 |
CNHC-4X6000 | 4 | 6000 | 1/30' | <450 | 20-750 | 5 | 20 | 7.5 | 11000 | 6460X2100X3200 |
CNHC-6X2500 | 6 | 2500 | 1/30' | <450 | 20-500 | 10 | 12 | 7.5 | 5000 | 3040X1610X1620 |
CNHC-6X3200 | 6 | 3200 | 1/30' | <450 | 20-750 | 9 | 14 | 7.5 | 6000 | 3840X1610X1620 |
CNHC-6X4000 | 6 | 4000 | 1/30' | <450 | 20-750 | 8 | 16 | 7.5 | 8200 | 4620X1750X1700 |
CNHC-6X5000 | 6 | 5000 | 1/30' | <450 | 20-750 | 6 | 18 | 7.5 | 10500 | 5400X1800X1900 |
CNHC-6X6000 | 6 | 6000 | 1/30' | <450 | 20-750 | 5 | 20 | 11 | 16500 | 6480X2100X2300 |
CNHC-8X2500 | 8 | 2500 | 1/30' | <450 | 20-500 | 10 | 12 | 7.5 | 6000 | 3040X1700X1700 |
CNHC-8X3200 | 8 | 3200 | 2 | <450 | 20-750 | 8 | 14 | 7.5 | 7200 | 3860X1700X1700 |
CNHC-8X4000 | 8 | 4000 | 2 | <450 | 20-750 | 8 | 16 | 7.5 | 8800 | 4640X1700X1700 |
CNHC-8X5000 | 8 | 5000 | 2 | <450 | 20-750 | 8 | 18 | 7.5 | 115000 | 5400X2100X2000 |
CNHC-8X6000 | 8 | 6000 | 2 | <450 | 20-750 | 8 | 20 | 11 | 18000 | 6480X2100X2350 |
CNHC-10X2500 | 10 | 2500 | 1/40' | <450 | 20-750 | 9 | 12 | 11 | 7300 | 3040X1700X1700 |
CNHC-10X3200 | 10 | 3200 | 1/40' | <450 | 20-750 | 9 | 14 | 11 | 8000 | 3860X1700X1700 |
CNHC-10X4000 | 10 | 4000 | 1/40' | <450 | 20-750 | 8 | 16 | 11 | 12050 | 4650X2100X2000 |
CNHC-10X6000 | 10 | 6000 | 2 | <450 | 20-750 | 5 | 20 | 15 | 24000 | 6500X2100X2300 |
CNHC-12X3200 | 12 | 2500 | 2 | <450 | 20-750 | 9 | 24 | 18.5 | 46500 | 9000X3500X3500 |
CNHC-12X4000 | 12 | 3200 | 2 | <450 | 20-750 | 9 | 12 | 18.5 | 11000 | 3140X2150X2000 |
CNHC-12X5000 | 12 | 5000 | 2/30' | <450 | 20-750 | 8 | 14 | 18.5 | 13000 | 3880X2150X2000 |
CNHC-12X6000 | 12 | 4000 | 2/30' | <450 | 20-750 | 6 | 16 | 18.5 | 16300 | 4650X2150X2000 |
CNHC-12X8000 | 12 | 6000 | 2/30' | <450 | 20-1000 | 5 | 18 | 18.5 | 20000 | 5900X2600X2700 |
CNHC-16X2500 | 12 | 8000 | 2/30' | <450 | 20-1000 | 5 | 12 | 18.5 | 36000 | 6900X2700X2700 |
CNHC-16X3200 | 16 | 2500 | 2/30' | <450 | 20-750 | 9 | 14 | 18.5 | 75000 | 3140X2150X2000 |
CNHC-16X4000 | 16 | 3200 | 2/30' | <450 | 20-750 | 8 | 16 | 18.5 | 15800 | 3880X2150X2000 |
CNHC-16X5000 | 16 | 5000 | 3 | <450 | 20-1000 | 8 | 18 | 18.5 | 18500 | 5900X2600X2700 |
CNHC-16X6000 | 16 | 4000 | 3 | <450 | 20-1000 | 6 | 20 | 18.5 | 21500 | 6900X2700X2700 |
CNHC-16X8000 | 16 | 6000 | 3 | <450 | 20-1000 | 5 | 24 | 22 | 47000 | 9000X3500X3500 |
CNHC-20X2500 | 20 | 2500 | 3 | <450 | 20-1000 | 5 | 12 | 22 | 19000 | 3400X2300X2500 |
CNHC-20X3200 | 20 | 3200 | 3 | <450 | 20-1000 | 8 | 14 | 22 | 23000 | 4150X2350X2700 |
CNHC-20X4000 | 20 | 2500 | 3 | <450 | 20-1000 | 8 | 16 | 22 | 23500 | 4850X2600X2700 |
CNHC-20X6000 | 20 | 3200 | 3 | <450 | 20-1000 | 5 | 20 | 22 | 26000 | 6700X3000X3000 |
CNHC-25X2500 | 25 | 2500 | 3 | <450 | 20-1000 | 4 | 12 | 27 | 38000 | 3200X2700X2900 |
CNHC-25X3200 | 25 | 3200 | 3 | <450 | 20-1000 | 8 | 14 | 37 | 19000 | 4200X2900X3000 |
CNHC-30X2500 | 30 | 2500 | 3 | <450 | 20-1000 | 5 | 12 | 37 | 23500 | 3300X2900X3000 |
CNHC-30X3200 | 30 | 3200 | 3/30' | <450 | 20-1000 | 4 | 14 | 40 | 26000 | 4200X2900X3200 |
CNHC-40X2500 | 40 | 2500 | 4 | <450 | 20-1000 | 3 | 12 | 75 | 38000 | 3200X3300X3000 |
CNHC-40X3200 | 40 | 3200 | 4 | <450 | 20-1000 | 3 | 14 | 90 | 49000 | 4300X3300X3200 |
