Indiborer Mini Yantra

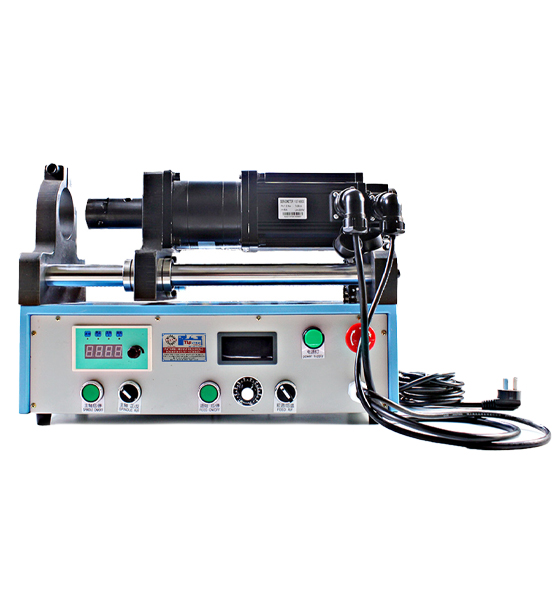

Portable Line Boring MachineThe IndiBorer Mini Yantra, developed by the TL Pathak Group in India, is an innovative and compact machine designed to automate the process of boring holes in various materials. With a blend of advanced technology and robust construction, this mini yantra offers exceptional precision and efficiency, making it an indispensable tool in the manufacturing and construction industries.The IndiBorer Mini Yantra features a user-friendly interface that allows for easy operation and quick setup. It incorporates cutting-edge sensors and a powerful motor to ensure accurate drilling and consistent results. The yantra is equipped with adjustable speed controls and depth settings, enabling operators to customize the drilling process according to specific requirements.Despite its compact size, the IndiBorer Mini Yantra boasts a durable build that guarantees longevity and reliability even in demanding work environments. Its ergonomic design promotes comfortable handling, reducing operator fatigue and enhancing productivity.
This mini yantra by TL Pathak Group offers versatility in hole diameter and depth, making it suitable for a wide range of applications, such as woodworking, metal fabrication, and plastic manufacturing. Its portable nature allows for easy transportation between job sites, maximizing its utility and convenience.
In summary, the IndiBorer Mini Yantra by TL Pathak Group stands as a cutting-edge solution for precision hole boring, providing efficiency, durability, and versatility to industries across India.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | Indiborer-Mini Yantra |
Voltage | 220 V |
Max. Diameter of Boring Hole | 45-200 mm |
Length of Boring Bar | 1500/2000 mm |
Spindle Movement | 290 mm |
Maximum Turning Amount | 2 mm |
Driver System | Servo Motor or Brushless Motor |
Motor Power | 1.8 KW |
The Spindle Speed | 0-200 rpm/min |
Feed Rate | 6 mm/rpm |
The Range of Feed Speed | 0-90 mm/min |
Torque | 61 N/M |
The Surface Roughness | 3.2 Ra |
Boring Roundness Error | 0.02 mm |
The Support Structure | screw |
The Range of Milling | 45-200 mm |
