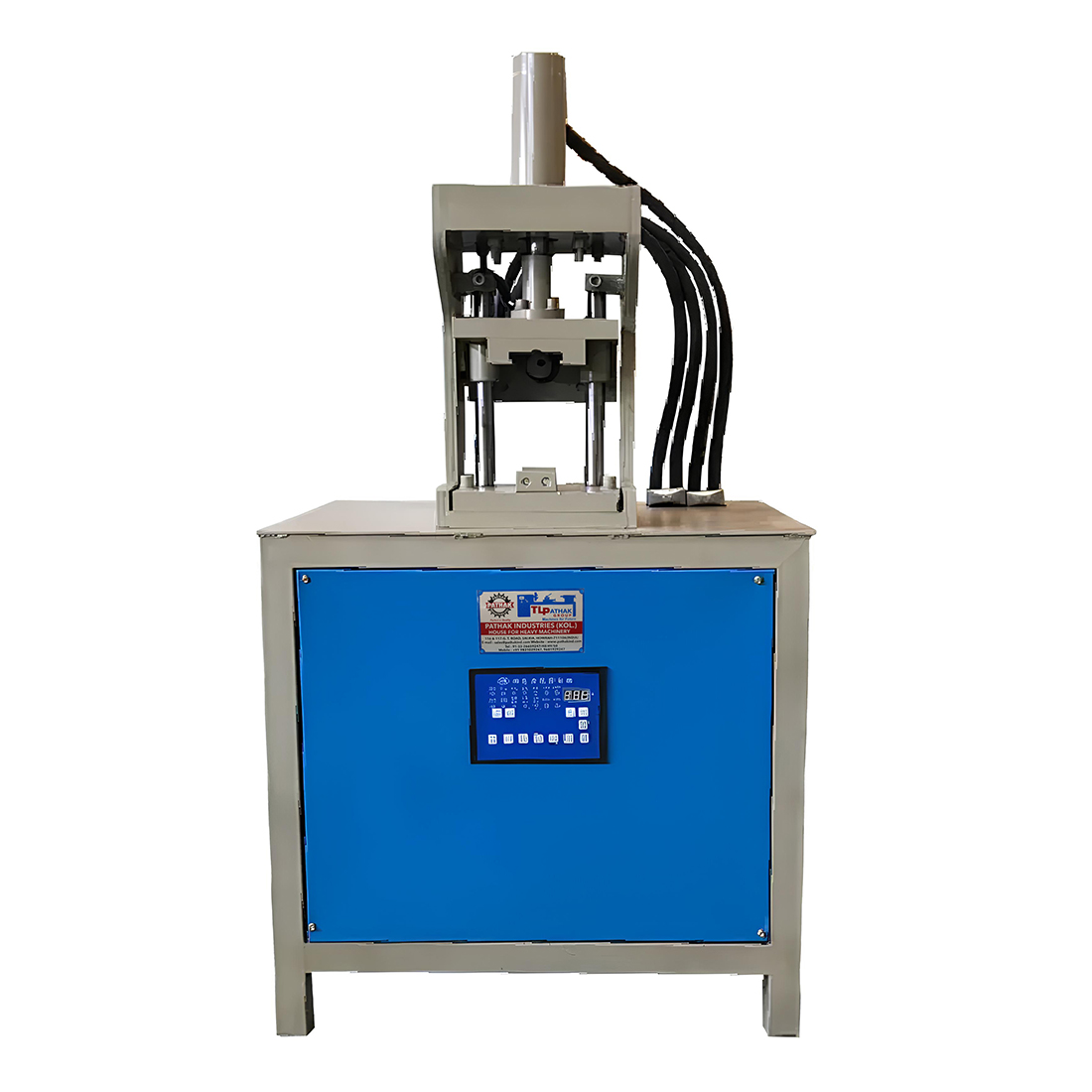

Square Pipe Notching Machine
Special Purpose Machines (SPM'S)TL Pathak Group introduces the Square Pipe Notching Machine, an advanced solution for precise notching and profiling of square pipes. Crafted with precision engineering, this machine ensures accurate and consistent notching results, catering to various industrial applications. It is designed to accommodate different pipe sizes and materials, offering versatility in notching processes.
The Square Pipe Notching Machine by TL Pathak Group features user-friendly controls, enhancing accessibility for operators with varying levels of expertise. Its robust construction and high-quality components contribute to durability and reliability in demanding industrial settings. This machinery reflects TL Pathak Group's commitment to providing cutting-edge solutions for shaping and profiling square pipes, meeting the diverse needs of the manufacturing sector with efficiency and precision.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPSPN-63 | TLPSPN-80 | TLPSPN-100 | TLPSPN-125 |
| Max Tube Specification | 50x50 mm | 80x80 mm | 100x100 mm | 100x100 mm |
| Max Processing Wall Thickness | 1.0 mm (stainless steel) 1.2 mm (Cooper,Aluminium,Iron) | 1.5 mm (stainless steel) 1.8 mm (Cooper,Aluminium,Iron) | 1.8 mm (stainless steel) 2.5 mm (Cooper,Aluminium,Iron) | 3.0 mm (stainless steel) 3.5 mm (Cooper,Aluminium,Iron) |
| Punch Specification | 3.5-15 mm | 3.5-20 mm | 3.5-30 mm | 3.5-40 mm |
| Max Length of One Feed | 1500 mm | |||
| Number of Continuous Machining Tools | Unlimited | |||
| Max Workpiece Length | 6000 mm | |||
| Processing Efficiency | 1-2 second/hole | |||
| X Axis Repeated Position Accuracy | +0.05 mm | |||
| Power Specification | 380+10 V,50 HZ | |||
| Total Power | 3 KW | 4 KW | 5.5 KW | 7.5 KW |
| Max Working Pressure | 80 Mpa | 100 Mpa | 150 Mpa | 200 Mpa |
| Size | 500x810x1360 mm | 500x810x1360 mm | 500x810x1400 mm | 650x950x1500 mm |
