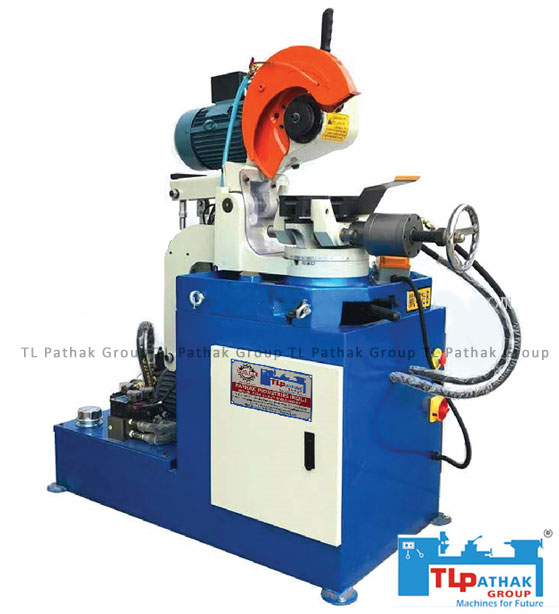

Semi Automatic Circular Saw Machine
Cutting MachinesAll of our circular saw machines offer a wide range of operational benefits to our customers as these machines have a high-speed cutting of metals. This is a semi-automatic machine and the sweet spot of the circular saw is 2-6 inch pieces of a common grade of steel that also includes carbon steel, alloy steel, tool steel, softer stainless steel, and aluminum material.
Both band saws and circular saws offers a wide range of operational benefits. Knowing the main features of each is critical to choosing the best option for your application: Precision circular Saws are ideals for repetitive,high-speed cutting of certain metals.This includes operations that process high volumes of the same material size,type,and shape or may require a high-quality finish. In terms of material size and type, the sweet spot of circular Saws is two- to six inch pieces of common grades of steel, including carbon steels, alloy steels, tool steels, softer stainless steel, and , in some cases, aluminum materials.
Band Saws are ideal for operations that need more flexibility.Most band Saws can cut material ranging in size from a one-inch piece to a six-foot block, depending on the capacity of the saw. An operation could use a band saw to cut a wide range of shapes from solid bars,tubes and pipes,profiles, plates, and blocks.Band Saws are effective at cutting a wider range of metal types and grades, and they can provide smooth cut in tougher metal, such as titanium and nickel-based alloys. This allows operators to switch back and forth between different metals more easily than they could with a circular Saw. In addition, band Saws are less expensive and are better equipped to handle stacking or bundling for cutting multiple pieces at once.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackMODEL | PCS 315 S | PCS 375 S |
Main motor HP | 3hp/3hp | 3hp/ 6p Siemens |
Coolant motor | 1/4 hp | 1/4 hp |
Output RPM @ Max Torque |
40/80 rpm @ 56Nt/44Nt. | 30/80 |
Total Weight | 330 kg. | 450 kg. |
Dimensions (floor) | 2.6f x 3.5f | 2.6f x 3.5f |
Saw Angle | +45 - 90 - -45 degree | +45 - 90 - -45 degree |
Round Pipe | 95 mm | 114 mm |
Square Pipe | 90 x 90 mm @90 | 100x100 mm |
Round Bar (MS) |
38mm | 50 mm |
Square Bar (MS) |
38x38 mm | 50 x50 mm |
