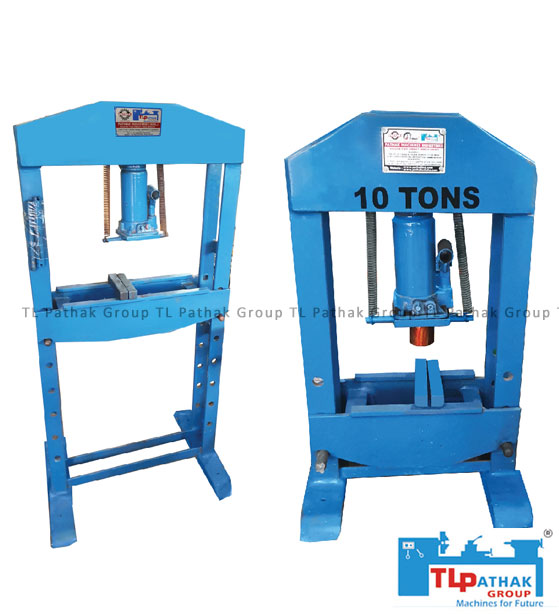

Mini Jack Type Hydraulic Press
Press MachinesPathak manufacturing provides the best quality Mini Jack Type Hydraulic press mainly used forging, clinching, moulding, punching, deep drawing, and metal forming operations and made with the latest technology and best quality raw material under the supervision of our skilful engineers provides you smooth functioning with high results output with low maintainable cost.
From ₹
84,000
To
98,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Tons | Between column Length x Width | Between Ram to bed Min. Max. mm. mm. | Travel of Ram mm. |
| 5 | 500 x 125 | 75 x 600 | 100 |
| 10 | 600 x 150 | 75 x 600 | 125 |
| 15 | 650 x 150 | 75 x 600 | 150 |
| 25 | 850 x 300 | 180 x 910 | 180 |
| 40 | 950 x 350 | 180 x 910 | 190 |
| 50 | 1000 x 400 | 180 x 950 | 200 |
| 60 | 1050 x 450 | 180 x 975 | 200 |
| 75 | 1150 x 500 | 180 x 975 | 210 |
| 100 | 1200 x600 | 180 x 975 | 225 |
| 150 | 1300 x 635 | 180 x 975 | 240 |
