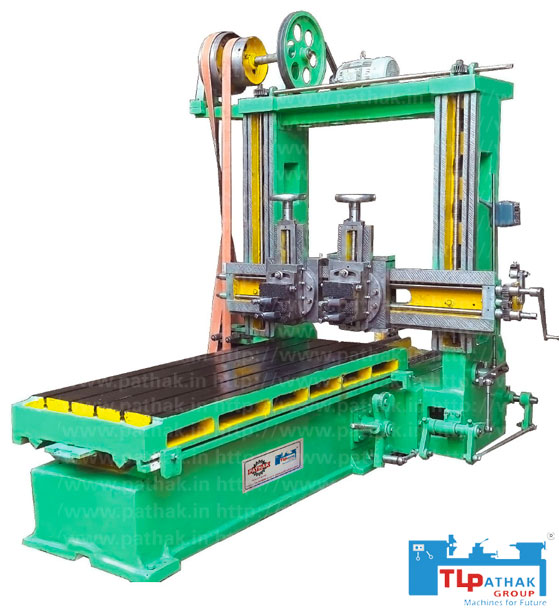

Planing Machine
Workshop EquipmentsThe Planing Machine by TL Pathak Group in India is a precision tool used for shaping and finishing large workpieces with high accuracy. This machine operates with a reciprocating motion of the cutting tool, allowing for smooth and uniform material removal. It features a sturdy construction and a powerful motor, ensuring stable and efficient performance. The Planing Machine offers adjustable feed rates and stroke lengths, providing versatility for various machining requirements. With its reliable functionality and excellent craftsmanship, this machine is a valuable asset for industries like metalworking, engineering, and manufacturing, where precise surface finishing and shaping are essential.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
Tool Kit
Instruction Manual
Milling Head
Drilling Head
Reducation Gear Box
Motor
Pannel Board
Digital Readout
| Strake of Table | 6' |
8' |
10' |
12' |
14' |
16' |
20' |
|||||||
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
|
| Length of bed | 114 |
2895 |
114 |
3657 |
180 |
4572 |
216 |
5483 |
252 |
6400 |
288 |
7915 |
360 |
9144 |
| Length of Table | 79 |
2006 |
106 |
2692 |
130 |
3552 |
154 |
3885 |
154 |
4572 |
204 |
5180 |
252 |
6400 |
| Max. Travel of Table | 72 |
1829 |
96 |
2438 |
120 |
3048 |
144 |
3657 |
158 |
4267 |
192 |
4876 |
240 |
6096 |
| Max. height under cross rail | 36 |
914 |
48 |
1219 |
54 |
1371 |
60 |
1524 |
60 |
1524 |
60 |
1524 |
72 |
1828 |
| Max.Planing width | 36 |
914 |
48 |
1219 |
54 |
1371 |
60 |
1524 |
60 |
1524 |
72 |
1828 |
72 |
1828 |
| Tool post down feed | 8 |
204 |
8 |
204 |
8 |
204 |
8 |
204 |
8 |
204 |
10 |
254 |
10 |
304 |
| Cutting Speed P.M. | 480 |
480 |
480 |
480 |
480 |
384 |
384 |
|||||||
| Return Speed P.M. | 640 |
640 |
640 |
640 |
640 |
412 |
412 |
|||||||
| Table width | 27 |
689 |
30 |
- |
36 |
934 |
36 |
934 |
36 |
934 |
48 |
1119 |
48 |
- |
| No.of Tool post on the cross rail | 1 |
1 |
2 |
2 |
2 |
2 |
2 |
|||||||
| Method of Drive | ELECTRICAL INDIVIDUAL |
|||||||||||||
| H.P.required | 3 |
5 |
7.5 |
10 |
10 |
15 |
20 |
|||||||
| Approximate weight in kg. | 3500 |
6000 |
9000 |
11000 |
13000 |
18000 |
20000 |
|||||||
