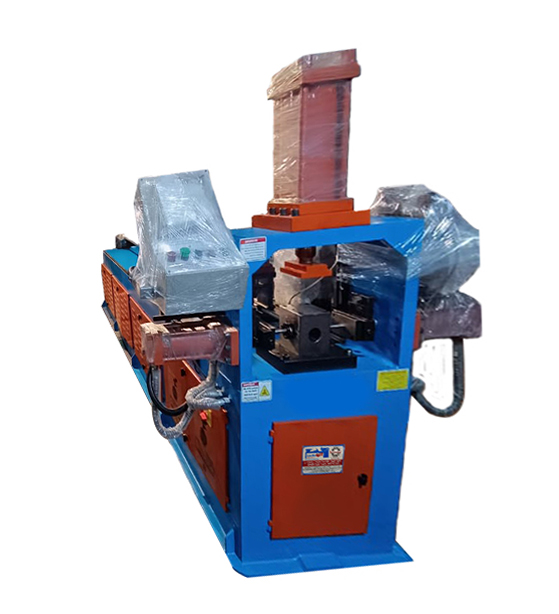

C z Purlin Punching Machine
Special Purpose Machines (SPM'S)The TL Pathak Group's C-Z Purlin Punching Machine is a cutting-edge solution for efficient and precise punching of C and Z purlins. Designed with advanced technology and precision engineering, this machine offers unmatched performance and reliability in the construction industry. With its robust construction and high-speed punching capabilities, it ensures quick and accurate punching of holes in purlins, enhancing productivity while maintaining quality standards. Its user-friendly interface and automated features make it easy to operate, reducing manual labor and minimizing errors. The machine's versatility allows for customization according to specific project requirements, accommodating various purlin sizes and hole patterns. Moreover, it is built to withstand the rigors of continuous operation, ensuring long-term durability and cost-effectiveness. In summary, the TL Pathak Group's C-Z Purlin Punching Machine is a cutting-edge solution that streamlines purlin manufacturing processes, offering efficiency, precision, and reliability in every operation.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel Name | TLPCZP |
Body | Mild Steel Fabricated |
Electric Control | with PLC Mitsubishi Make |
Accuracy | +-0.10 mm |
Hydraulic Valve | Yuken Brand |
Oil Pump | Hydraulic power pack build with double Pump |
Electric Motor | 7.5 H.P. Crompton Make |
Saving Program | 100 + |
Maximum Angle Length | 6500 mm |
Punching Capacity | 6x65x65 mm |
Hydraulic Tank | 150 lit. (Without Oil) |
Electric Panel | 2 Nos. |
Cycle Time | 3 sec per hole including feed |
Pipe Clamping | By Hydraulic Cylinder |
Gear Box | Servo Motor 1 K.W. Planetory Gear Box |
HMI | Touch Screen 7” Mitsubishi or Fuji Make |
