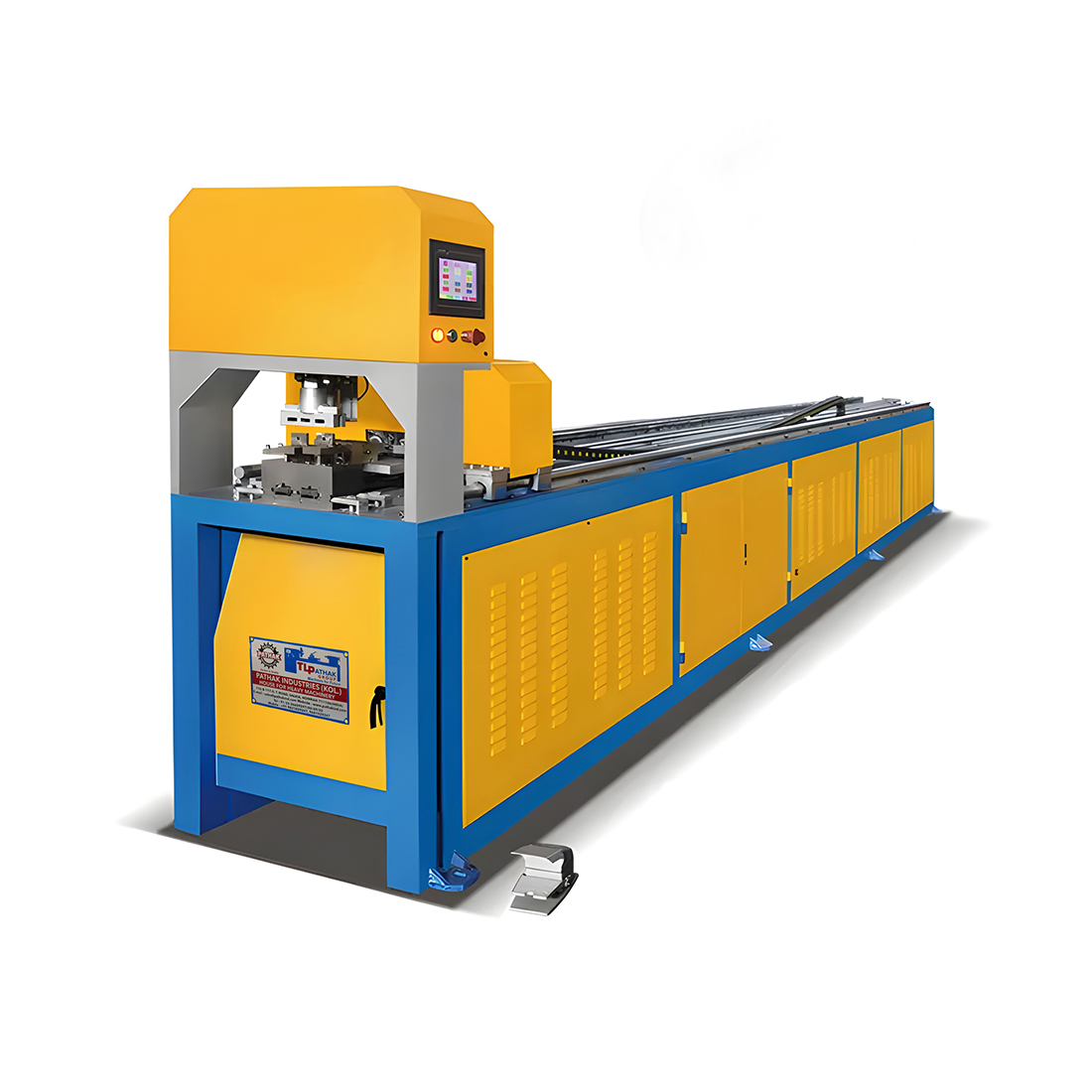

CNC Pipe Punching Machine
Pipe/Tube Working MachineThe TL Pathak Group introduces its CNC Pipe Punching Machine, a cutting-edge solution for precision perforation in the pipe manufacturing industry. This state-of-the-art machine seamlessly combines computer numerical control (CNC) technology with advanced punching capabilities, ensuring unparalleled accuracy and efficiency. Designed to handle various pipe sizes and materials, it offers a versatile solution for creating precise perforations, holes, and notches in pipes with exceptional speed and reliability. The machine's user-friendly interface allows for easy programming and customization, enabling operators to achieve intricate patterns and designs effortlessly. With a robust build and cutting-edge features, TL Pathak Group's CNC Pipe Punching Machine sets a new standard in the industry, empowering manufacturers to enhance productivity and achieve superior results in pipe fabrication.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackSize | Single line,Double line |
Processing Category Set | Single punch,not equidistant punching,equidistant punching rotary 360 degree (can be customized) |
Diameter and Thickness of Punching Processing | 50xt 3---40xt 12 mm |
Processing of Pipe Diameter (can be customized) | Square Tube : 20x20---120x120 mm |
Rectangular Tube : 15x30---60x120 mm | |
Angle Iron : 30x30---120x120 mm | |
Angle Iron : 25x50---120x120 mm | |
Punching hole distance | 0.1-11900 mm |
Punching Speed | 0.8-1.5 second/per hole,max 180 mm stroke |
Maximum Punching Distance | 12000 mm (can be customized) |
Standard length of processing | 12000 mm (can be customized) |
Transmiss Parts | flock and pinion drive,ball screw drive |
Ram Pressure | 5T-60T |
Punching Hole Method | Oil Pressure |
Power | 380 V,50 Hz |
