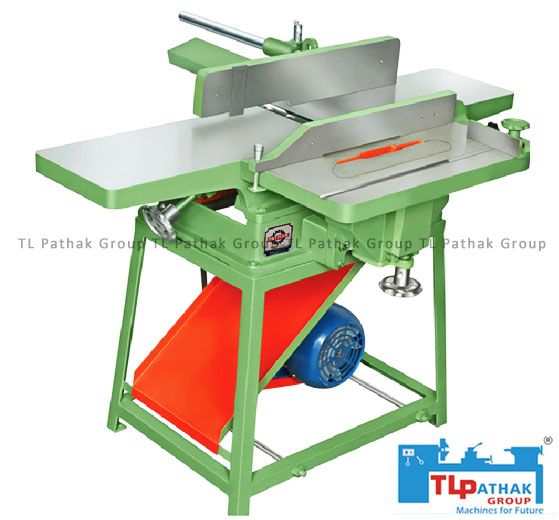

Surface Planner Combined Circular Saw
Wood Working MachinesProviding the best quality surface planer combined circular saw mainly used tor grooving, sawing, planning, designing and rebating in woodworking industries. We provide this machine with standard accessories like a box spanner for the blade, motor pulley, knife spanner, mitred gauge, cutter support, surface support. The machine is made with premium quality raw material and provides durability to customers.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| MODEL NO. | BK201 | BK202 | BK203 | BK204 | BK205 |
| Dimension | INCH / MM | INCH / MM | INCH / MM | INCH / MM | INCH / MM |
| Planner Table Width | 13'' / 330 | 13'' / 330 | 13'' / 330 | 10'' / 254 | 7'' / 177 |
| Planner Table Length | 60'' / 1524 | 54'' / 1371 | 48'' / 1219 | 48'' / 1219 | 42'' / 106 |
| Cutter Diameter | 12'' / 305 | 12'' / 305 | 12'' / 305 | 10'' / 254 | 10'' / 254 |
| Max. Cutting Capacity | 3'' / 75 | 3'' / 75 | 3'' / 75 | 21/2'' | 21/2'' |
| Circular Table Length | 24'' / 610 | 24'' / 610 | 24'' / 610 | 24'' | 20 1/2'' |
| No.of Knife | 2 NOS. | 2 NOS. | 2 NOS. | 2 NOS. | 2 NOS. |
| Main Router RPM | 3700 | 3700 | 3700 | 3700 | 3700 |
| V-Belt Size | B-62 | B-62 | B-59 | B-58 | B-57 |
| Power Requi. / Motor RPM | 3 H.P. / 1440 | 3 H.P. / 1440 | 3 H.P. / 1440 | 2 H.P. / 1440 | 2 H.P. / 1440 |
| Standard Accessories: | Box spanner for blade,motor pulley.knife spanner,mitred gauge,cuttersupport,surface support. | ||||
Grooving
Rebating
Surfacing
