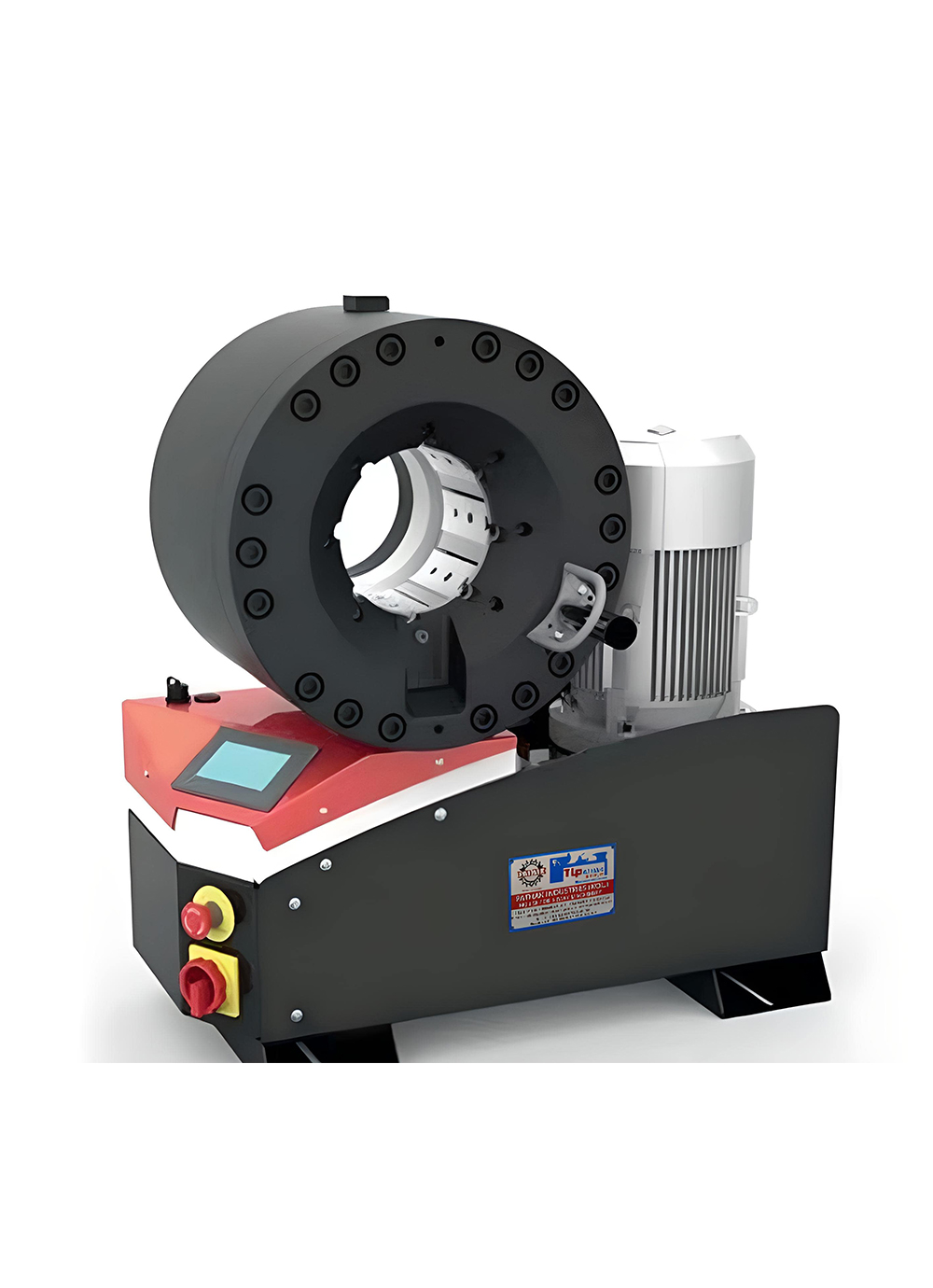

Hydraulic Hose Crimping Machine - Indie Crimp Vishal
Hose Crimping machinesThe Indie Crimp Vishal Machine, a Hydraulic Hose Crimping Machine from TL Pathak Group, stands as a pinnacle of precision and efficiency in crimping hydraulic hoses. Crafted with advanced hydraulic technology, it ensures consistent and reliable crimps for a diverse range of hose sizes and materials, catering to various industrial applications. The machine features a robust design, ensuring durability and stability during operation,equipped with user-friendly controls, the Indie Crimp Vishal Machine empowers operators to achieve accurate and secure crimps effortlessly. Its versatility and capability to handle a wide array of hydraulic hoses make it an ideal choice for industries seeking optimal performance and safety in their hydraulic systems.
TL Pathak Group's commitment to innovation is evident in the Indie Crimp Vishal Machine, providing a high-quality solution that reflects their dedication to delivering cutting-edge technology for efficient and reliable hydraulic hose crimping across industrial sectors.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackCrimping Range | 6-102 mm |
Free Dies | 17 sets included |
Accuracy | 0.01 mm |
Volume of Oil Tank | 10 L |
System Pressure | 31.5 Mpa |
Motor Power | 4 KW |
Voltage | 220V,50 HZ,Single Phase |
Buckling Pressure | 2100 T |
Efficiency | 200 Pcs/H |
Maximum Open Diameter | 200 mm |
The Max Open Tolerance | +- 30 mm |
Control System | Micro Control with Button Control |
Hydraulic Oil | 46 L |
Net Weight | 500 kg |
Gross Weight | 520 kg |
Machine Dimension | 890x570x1200 mm |
Package Dimension | 910x590x1210 mm=0.66 CBM |
Foot Pedal and light | included |
