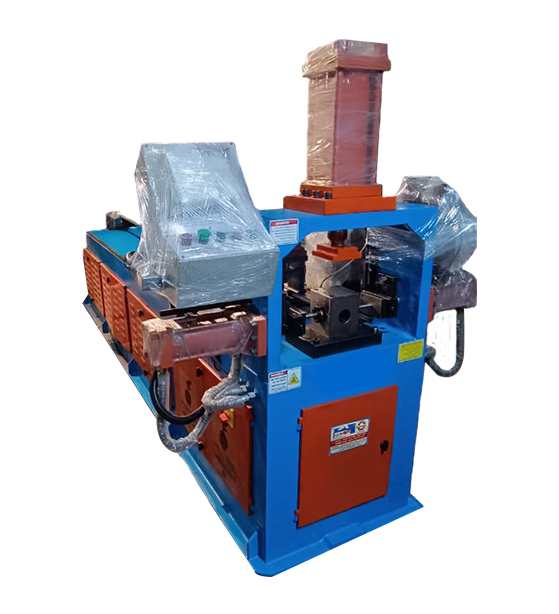

Slotted Rack / Display Rach Automatic Punching Machine
Special Purpose Machines (SPM'S)The Slotted Rack/Display Rack Automatic Punching Machine by TL Pathak Group is a cutting-edge solution for efficient and precise manufacturing processes. Designed to streamline the production of slotted racks and display racks, this machine boasts advanced automation features that enhance productivity while ensuring accuracy. Its robust construction and intelligent design allow for seamless operation, minimizing downtime and maximizing output. With customizable punching options, it accommodates various rack designs, meeting diverse industry needs. Equipped with state-of-the-art technology, including automatic feeding and punching mechanisms, it significantly reduces manual intervention, thereby optimizing labor costs and enhancing operational efficiency. Additionally, stringent quality control measures guarantee consistent and high-quality results, making it a reliable choice for manufacturers seeking superior performance and reliability in their production processes. The Slotted Rack/Display Rack Automatic Punching Machine stands as a testament to TL Pathak Group's commitment to innovation and excellence in engineering solutions.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel Name | TLPSRP |
Body | Mild Steel Fabricated |
Electric Control | with PLC Mitsubishi Make |
Accuracy | +-0.10 mm |
Hydraulic Valve | Yuken Brand |
Oil Pump | Hydraulic power pack build with double Pump |
Electric Motor | 7.5 H.P. Crompton Make |
Saving Program | 100 + |
Maximum Angle Length | 6500 mm |
Punching Capacity | 6x65x65 mm |
Hydraulic Tank | 150 lit. (Without Oil) |
Electric Panel | 2 Nos. |
Cycle Time | 3 sec per hole including feed |
Pipe Clamping | By Hydraulic Cylinder |
Gear Box | Servo Motor 1 K.W. Planetory Gear Box |
HMI | Touch Screen 7” Mitsubishi or Fuji Make |
