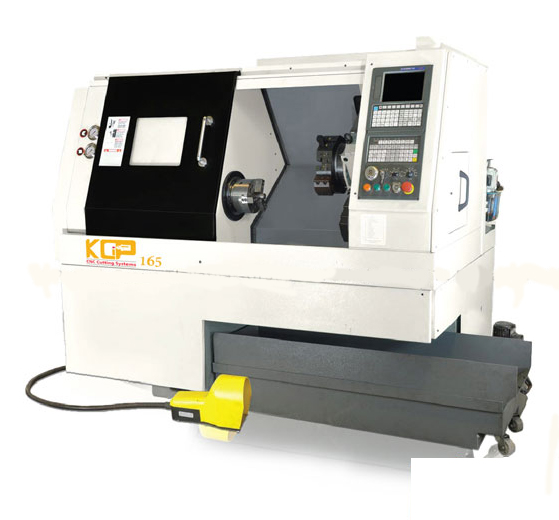

CNC Lathe Machine KGP 165
CNC MachinesWe are one of the best manufacturers and exporter in the country of 2600*1450*1800 dimensions CNC lathe machine KGP165 which weighs approximately 3400 kilogram. It has a maximum turning diameter of 275 mm and a standard turning diameter of 165 mm with maximum turning length of 280 mm, which is unbeatable at this price range with such great quality.
From ₹
1,324,000
To
1,564,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackCAPACITY |
KCP TURN 165 | KCP TURN 200 | KCP TURN 230 | KCP 230L | |
Swing over Bed | mm | 475 | 500 | 500 | 500 |
Maximum Turning Dia. | mm | 275 | 300 | 350 | 350 |
Standard Turning Dia. | mm | 165 | 200 | 230 | 230 |
Max.Turning Length (with chuck) | mm | 280 | 300 | 500 | 500 |
Admit Between Centres | mm | 350 | 350 | 600 | 1200 |
Chuck Size | mm | 170 | 200 | 210 | 210 |
TRAVERSES |
|||||
Cross (X-Axis) Travel | mm | 175 | 175 | 175 | 175 |
Longitudinal (Z-Axis) Travel | mm | 350 | 550 | 550 | 1120 |
Rapid Feed (X & Z Axis) | m/min | 30/30 | 30/30 | 30/30 | 30/30 |
MAIN SPINDLE |
|||||
Spindle Motor Power | cont/30 min. | 5.5/75KW | 5.5/75KW | 5.5/75KW | 5.5/75KW |
Spindle Bore | mm | 45 | 45 | 56 | 56 |
Spindle Nose | A2-5 | A2-5 | A2-6 | A2-6 | |
Max.Bar Capacity | mm | 38 | 38 | 48 | 48 |
Spindle Speed Range | rpm | 50-4500 | 50-4000 | 50-3500 | 50-3500 |
Full Power Speed Range | rpm | 100-3300 | 1000-3300 | 1000-3000 | 1000-3000 |
TAIL STOCK |
|||||
Quill Dia. | mm | 80 | 80 | 80 | 80 |
Quill Taper | mm | MT4 | MT4 | MT4 | MT4 |
Quill Stroke | mm | 100 | 100 | 100 | 100 |
Base Travel | mm | 250 | 250 | 400 | 400 |
TURRET |
|||||
No. of Tool Position | No. | 8 | 8 | 8 | 8 |
Tool Shank Size | mm | 25x25 | 25x25 | 25x25 | 25x25 |
Max Boring Bar Dia. | mm | 40 | 40 | 40 | 40 |
Positioning Uncertainty | 0.007 | 0.007 | 0.007 | 0.007 | |
Repeatability | mm | 0.003 | 0.003 | 0.003 | 0.003 |
OTHER |
|||||
Weight ( Approx.) | kgs. | 3400 | 3500 | 3900 | 4300 |
Dimension (Approx.) | (L x W x H) | 2600x1450x1800 | 2600x1450x1800 | 2600x1450x1800 | 2600x1450x1800 |
