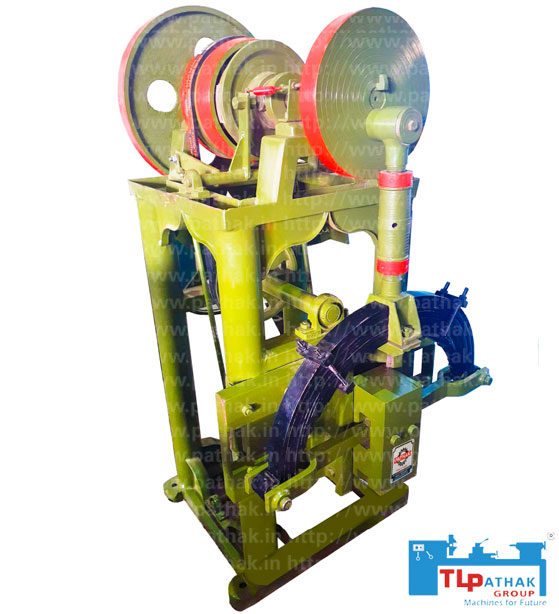

Economic Hercules Type Power Hammer
Press MachinesManufacturing the best quality Hercules type power hammer made with premium quality raw material and latest technologies under the supervision of our technical team ensures efficient work and long life of the machine. It provides smooth functioning to the buyers with all the unique and latest features required by a customer.
From ₹
225,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackHercules Hammer Dies
MODEL | PAH-15L | PAH-25L | PAH-40L | PAH-55L | PAH-75L | PAH-110L |
Weight of falling parts(kg) | 15 | 25 | 40 | 55 | 75 | 110 |
Hitting energy (kj) | 0.16 | 0.27 | 0.53 | 0.7 | 1 | 1.98 |
Hitting frequency (min-1) | 300 | 250 | 245 | 230 | 210 | 180 |
Height of working area (mm) | 160 | 240 | 245 | 270 | 297 | 355 |
D-Depth of throat(mm) | 170 | 235 | 270 | 300 | 330 | 400 |
Working Piece | 30 x 30 (Square) | 40 x 40 (Square) | 52 x 52 (Square) | 60x60 (Square) | 65x65 (Square) | 110x110 (Square) |
035 (Round mm) | 048 (Round mm | 068 (Round mm | 075 (Round mm | 085 (Round mm | 0120 (Round mm | |
Power (kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 |
Weight (Include Base) | 540 | 1100 | 1390 | 1700 | 2640 | 3300 |
