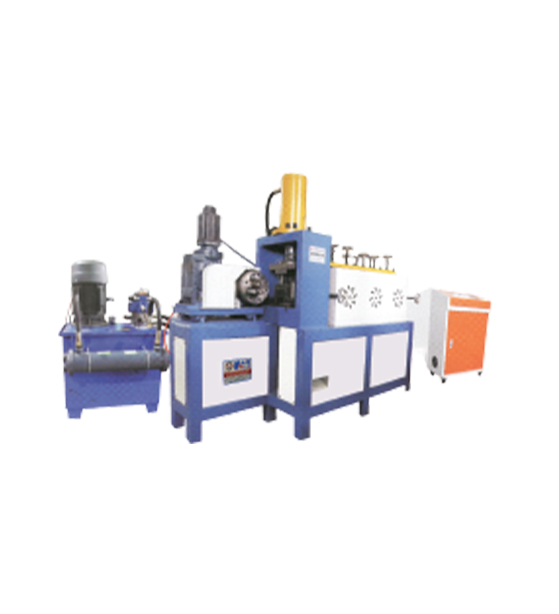

Clamp Making Machine (CNC)
Special Purpose Machines (SPM'S)The CNC Clamp Making Machine by T.L. Pathak Group is an advanced and precision-engineered solution for manufacturing high-quality clamps with unparalleled efficiency. This machine combines cutting-edge CNC technology with robust construction to deliver exceptional performance in clamp production. It features a user-friendly interface, allowing operators to program and control the machining process with ease,equipped with servo motors and ball screws, the machine ensures precise and repeatable manufacturing, meeting stringent quality standards. The CNC Clamp Making Machine is versatile, accommodating various clamp sizes and designs, making it adaptable to diverse production needs. Its automated processes significantly reduce manual intervention, enhancing productivity and minimizing errors.
T.L. Pathak Group's commitment to innovation and reliability is evident in this machine, offering manufacturers a competitive edge in clamp production through advanced technology, efficiency, and the consistent delivery of top-notch products.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackApplicable Material | Mild Steel |
Main Function | Straightening,Punching,Bending,Cutting,Forming Stamping |
Control Type | Hydraulic Type CNC Control Full Auto PLC Programme |
No of Cylinder | 2 Pcs |
Iron Size Range | W:30-80 MMT:3-8 MM |
Feeding Servo Motor | 7.5 KW (1) |
Bending Servo Motor | 5.5 KW (2) Max. |
Bending Speed | 800 Degree/Sec |
Feeding Wheels Materials | CR12MOV |
Electric Control System | Kunlun |
Hydraulic Motor Power | 11 KW |
Bending Range (Dia) | 60-700 mm |
Mold Materials | CR12MOV |
Feeding | Rack or Decoiler |
Outer Dimension | 2700x1250x1900 (mm) |
Net/Gross Weight | 2600/2700 Kgs |
