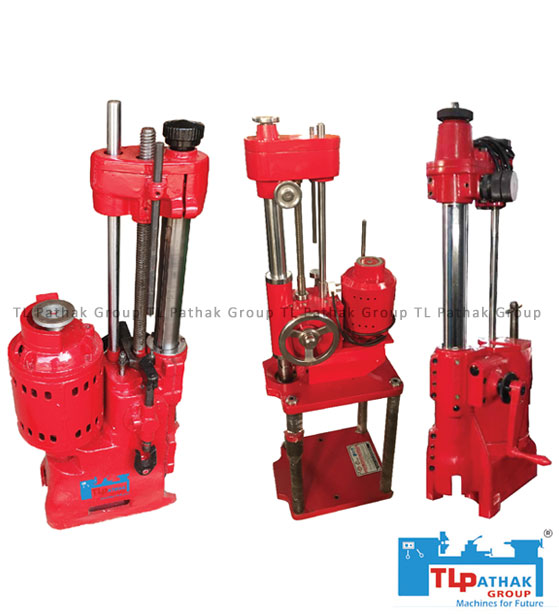

Cylindrical Re-Boring Machine
Garage MachinesPathak is a leading brand manufacturer of the best quality cylindrical re-boring machine available with wide ranges mainly used as metal cutting tools in machine shops on various materials like Turret lathes, Vertical Turret Lathes, Lathes lathes and Chuckers. The machine is made with high-quality raw material that provides efficiency and durability, resulting in quality output.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | PCB 048 | PCB 055 | PCB 038(With Stand) | PCB 065 | |
Uses |
Motor Cycle | Motor Cycle | Moped | Heavy Car, Medium Compressor Diesel Vehicle | |
Light Car | Light & Medium Car | Mtor Cycle CC | - |
||
Scooter | Scooter | - |
- |
||
- |
Three Wheeler Car | - |
- |
||
- |
Medium Duty Compressor | - |
- |
||
Boring Capacity | Range of Bore mm | 48.0mm (1.900) 76mm~(3.000'') |
53.5(2.100'') 90 (3.700'') |
38.1 mm (1.500'') 60mm (2.350'') |
66 mm (2.600'') 120 mm (5'') |
Depth of bore mm | 200 mm (8'') | 245 mm (9.700'') | 150 mm (6.000'') | 300 mm (12'') | |
Spindle Speed (50 Cycle) | High RMP | 420~ | 420~ | 460 | 225 RMP |
Low RMP | 345~ | 345~ | - |
142 RMP | |
Rate of Cut | High mm/min. | 42(1.65'')~ | 42(1.65'')~ | - |
43 mm/Min |
Low mm/min. | 35(1.38'')~ | 35(1.38'')~ | - |
27 mm/Min | |
Rate of Feed mm | 0.09~ | 0.09~ | 0.09~ | 0.09 | |
Max depth of cut mm (at Low Speed) | 1(0.040'')~ | 1(0.040'')~ | 0.8 (0.030'') | 1.0mm(0.040'') | |
Motor | Single Phase 1/3 HP | Single Phase 1/3 HP | Single Phase 1/3 HP | Single Phase 1HP / Three Phase 1HP |
|
Single Phase 1/3 HP 200v220v | Single Phase 1/3 HP 200v220v | Three Phase 1/3 HP | - |
||
Net Weight (Tool Box not included ) kg. Approx | 63.5 | 63.5 | - |
- |
