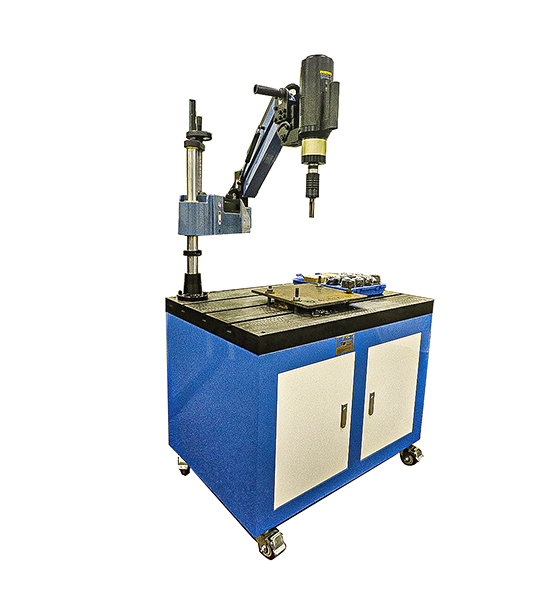

Flexible Arm Tapping Machine
Tapping MachineThe flexible arm tapping machine developed by TL Pathak Group in India is a versatile and efficient tool designed for precise and convenient tapping operations. This machine features a flexible arm that allows for easy maneuverability and positioning, ensuring accessibility to various workpieces.
The flexible arm tapping machine is equipped with a powerful motor and a robust tapping head, enabling it to handle a wide range of materials and thread sizes. The machine offers adjustable speed and depth controls, providing flexibility to accommodate different tapping requirements. With its intuitive controls, operators can easily set the desired parameters for optimal results.
One of the key advantages of the flexible arm tapping machine is its ability to tap holes in difficult-to-reach areas or irregular surfaces. The flexible arm allows for easy alignment and positioning, enabling efficient tapping in challenging workpiece geometries.
TL Pathak Group's flexible arm tapping machine emphasizes durability, reliability, and precision, making it suitable for various industries such as manufacturing, automotive, and aerospace. It streamlines the tapping process, reducing manual effort, improving productivity, and ensuring consistent and high-quality thread formation in a wide range of applications.
Download Catalog Download User Manual Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | M3-M16 | M6-M36 | M6-M48 |
Power Retain | 220 V | 220 V | 220 V |
Rated Power | 600 W | 1200 W | 1500 W |
Rotating Speed | 0-312 rpm | 0-150 rpm | 50-250 rpm |
Working Type | Universal/Vertical | Universal/Vertical | Universal/Vertical |
Working Radius | 1100 mm | 1250 mm | 1300 mm |
Torsion Protection Chuck ISO Standards (6 Pcs) | M3,M4,M4,M5,M6/8,M10,M12,M14,M16 | M6/8,M10,M12,M14,M16,M18/20,M22,M24,M27/30,M33,M36 | M6,M10,M12,M14,M16,M18,M22,M24,M27,M33,M36,M39/42,M45 |
Gross Weight | 32 Kg | 51 Kg | 110 Kg |
