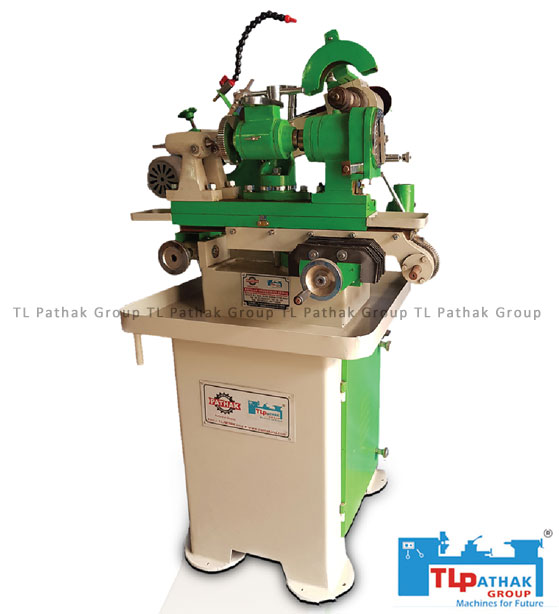

Universal Tool and Cutter Grinder
Grinding MachinesThe grinding machine that is the Universal tool and cutter grinder is used in the industries to sharpen milling cutters and thd tool bits along with a host of other cutting tools. This machine is an extremely versatile machine that is used to perform a variety of grinding operations like surface, cylindrical, or complex shapes. The T.L Pathak Group Leading Manufacturer and Exporters of Universal Tool and Cutter Grinder
From ₹
285,000
To
450,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back(A) FUNCTIONAL PARAMETERS |
MM |
Maximum Diameter of cutter that can be grind | 250 mm |
Maximum Distance Between centers | 300 mm |
Maximum Length of cutting edges grind | 260 mm |
Grindining spindle speeds | 4600 RPM |
Swing diameter on standard cenres & work head | 275 mm |
Working surface of table | 450 x 125 |
Longitudinal Traverse | 200 mm |
Cross Traverse | 150 mm |
(B) PACKING & INSTALLATION |
MM |
Base of the machine | 599 x 430 |
Floor Area occupied | 765 x 1145 |
Height of the machine | 1375 mm |
Weight of the machine with standard accessories | 325 kg. |
Dimensions of Packing Box | 1525x915x915 |
Gross Weight Approx | 350 kg. |
Electric Motor | 0.5 HP - 2800 RPM |
