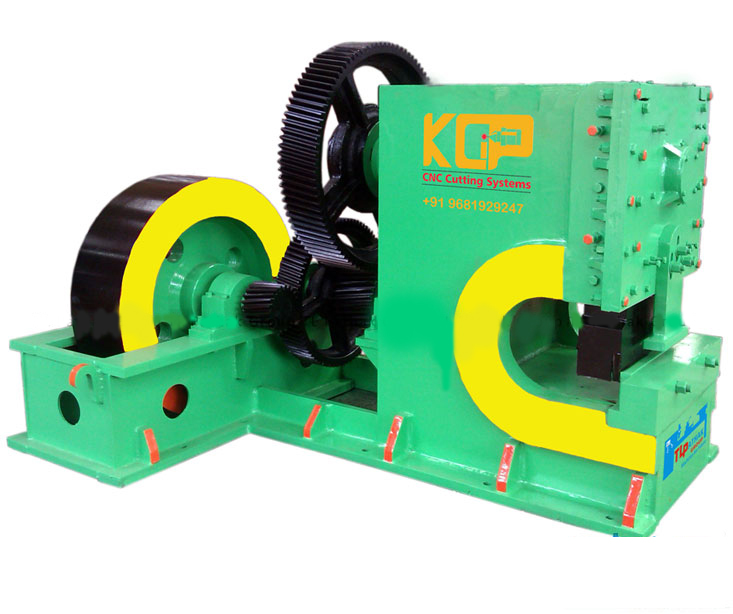

Scarp Shearing Machine
Scrap Baling MachinesTL Pathak Group in India offers a high-quality scrap shearing machine designed to efficiently process scrap metal. This robust machine is built to withstand heavy-duty applications and features a cutting-edge hydraulic system. With a compact design and user-friendly controls, the scrap shearing machine is easy to operate and ensures optimal productivity.Equipped with sharp blades, the machine can precisely shear various types of scrap metal, such as steel, aluminum, and copper. It effectively reduces the size of the scrap, making it easier to handle and transport for further processing. The advanced safety features incorporated into the machine guarantee operator protection and prevent accidents.
The scrap shearing machine manufactured by TL Pathak Group is known for its durability, reliability, and low maintenance requirements. It is an ideal solution for scrap yards, recycling facilities, and metal processing industries, enabling them to efficiently manage and recycle scrap metal while maximizing their operational efficiency.
Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | TLPSC20 (Vertical Kenchi Machine) | TLPSC22 (Vertical Kenchi Machine) | TLPSC25 (Vertical Kenchi Machine) | TLPSC 30 Double Gear Vertical Scrape Cutting Machine |
Blade Size | 20 Inch | 22 Inch | 25 Inch | 30 Inch |
Blade open size | 75 MM | 90 MM | 110 MM | - |
Crank Shaft | 1 Nos | 1 Nos | 1 Nos | 3 Nos |
Steel Gear | 1 Nos | 1 Nos. | 1 Nos | 2 Nos |
Fly Wheel | 1 Nos. | 1 Nos. | 1 Nos | 1 Nos |
Gun Metal Bushing | Provided | Provided | Provided | Provided |
V-Belt | Provided | Provided | Provided | Provided |
Pulley | Provided | Provided | Provided | Provided |
Elector Starter | Provided | Provided | Provided | Provided |
Motor | 7.5 HP 1440 RPM MAKE NBE | 7.5 HP 1440 RPM MAKE NBE | 10 HP 1440 RPM MAKE NBE | 20 HP |
Quotation Valid | 10 Days. | 10 Days. | 10 Days. | 20 Days. |
Overall Dimension | 84 (L) x 36 (W) x 140(H) In Inch | 84 (L) x 39 (W) x 143(H) In Inch | 86 (L) x 42 (W) x 150(H) In Inch | - |
Body Plate | 16mm,20mm,30mm,Fabricated Body | 16mm,20mm,30mm,Fabricated Body | 16mm,20mm,30mm,Fabricated Body | 35mm,45mm, Fabricated Body |
Machine Weight | 2100 klg aporrox | 2300 klg aporrox | 2600 klg aporrox | 10.5 Ton Approx. |
Delivery Time | Working 25 Days | Working 25 Days | Working 25 Days | Working 60 Days |
