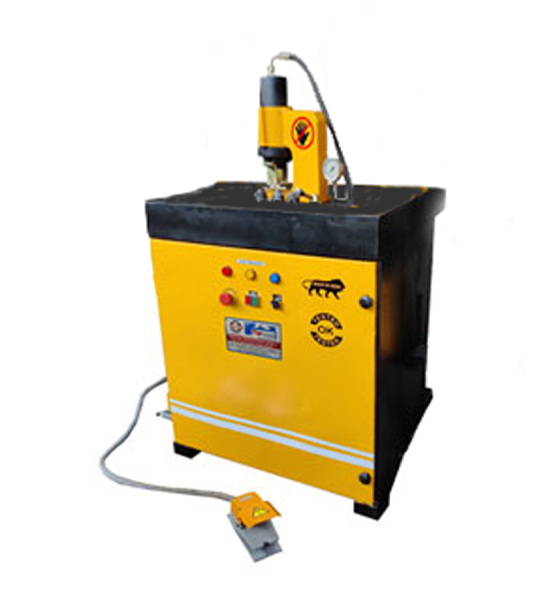

Busbar Punching Machine
Busbar MachineThe Busbar Punching Machine offered by TL Pathak Group in India is a specialized tool used for punching holes in copper and aluminum busbars used in switchboards, transformers, and other electrical applications. It is a hydraulic machine that can punch holes of different sizes and shapes quickly and accurately. The machine has a rugged construction and is easy to operate, making it an ideal choice for high-volume production environments. It also has a compact design that saves space and allows for easy transportation. Overall, TL Pathak Group's Busbar Punching Machine is a reliable and efficient solution for punching holes in busbars and improving the productivity of electrical applications.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Punching | INDIE 70 |
| Punching capacity of copper row/aluminum row | |
| 200*12mm (width thickness) punching mold (mm) | 010.5 013.8 017.5 020.5 |
| Punching Force | 35T |
| Cutting | CWC-200 |
| cutting capacity of copper row/aluminum row | |
| 200*12mm(width thickness) Cutting Force | 20T |
| Bending | 200A |
| Bending capacity of copper row/aluminum row | |
| 200*12mm (width thickness) Bending Force | 20T |
| Motor Power | 0.75KW |
| Voltage | 220V 50Hz |
| Table size : (mm) | 700(L)*700(W)*850(H) |
| Oil delivery | low2 5L/min, high 0.9L/min |
| Pressure rating | low 0-20, high 20 700kgf cm |
| Weight | 207kg |
| Packing | wooden box tray packaging |
| Dimension (mm) | 750*960*1220mm |
