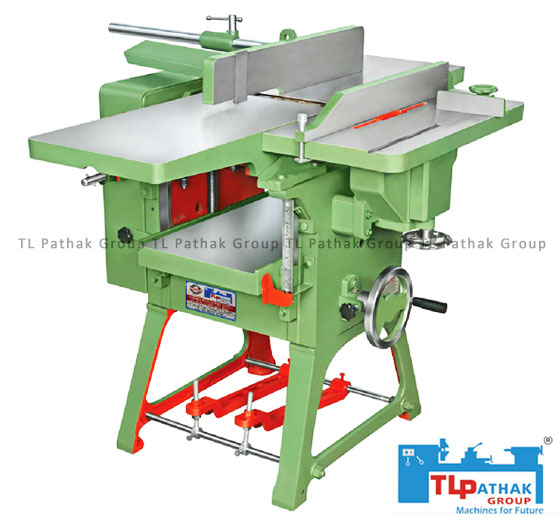

Thickness With Surface Planner Combined Circular Saw There in One
Wood Working MachinesPathak manufacturers high-quality thickness with surface planer combined circular saw. There is one made with the latest technology and premium quality material which ensures long working life efficiency and durability of the machine. High-efficiency results in high output results, and it provides high output results at a low maintenance cost.
From ₹
78,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackMODEL NO. | PTSC318 | PTSC315 | PTSC312 | PTSC309 | PTSC306 |
Dimension | INCH / MM | INCH / MM | INCH / MM | INCH / MM | INCH / MM |
Planner Table Width | 19'' / 482 | 16'' / 406 | 13'' / 330 | 10'' / 254 | 7'' / 177 |
Planner Table Length | 54'' / 1371 | 48'' / 1219 | 48'' / 1219 | 46'' / 1168 | 42'' / 1066 |
Min.Thicknessing Capacity | 1/4'' / 6 | 1/4'' / 6 | 1/4'' / 6 | 1/4'' / 6 | 1/4'' / 6 |
Max.Thicknessing Capacity | 9'' / 228 | 9'' / 228 | 8'' / 203 | 7'' / 177 | 7'' / 177 |
Thicknessing Table Width | 18'' / 455 | 15'' / 381 | 12'' / 305 | 9'' / 228 | 6'' / 152 |
Thickness Table Length | 24'' / 610 | 24'' / 610 | 24'' / 610 | 24'' / 610 | 23'' / 584 |
Cutter Diameter | 12'' / 305 | 12'' / 305 | 12'' / 305 | 10'' / 254 | 10'' / 254 |
Max. Cutting Capacity | 3'' / 75 | 3'' / 75 | 3'' / 75 | 2 1 / 2'' | 2 1 / 2'' |
Circular Table Length | 24'' / 610 | 24'' / 610 | 24'' / 610 | 24'' | 20'' 1/2'' |
No. of knife | 2 NOS. | 2 NOS. | 2 NOS. | 2 NOS. | 2 NOS. |
Main Router RPM | 3700 | 3700 | 3700 | 3700 | 3700 |
V-Belt Size | A-66,66,45 | A-66,66,45 | B-63, A-41 | B-62, A-40 | B-62,A-40 |
Power Requi. / Motor RPM | 5 H.P. / 1440 | 5 H.P. / 1440 | 3 H.P. / 1440 | 2 H.P. / 1440 | 2 H.P. / 1440 |
Standard Accessories | Box spanner for blade, motor pulley, top handle,knives spanner,mitred gauge,cutter support, surface support. | ||||
Optional Accessories | V-Belt,Motor,Toolkit,Gear Free System,3 Blade Roller, Drill Attachment,Side Moulding Attachment |
Grooving
Thicknessing
Rebating
Surfacing
