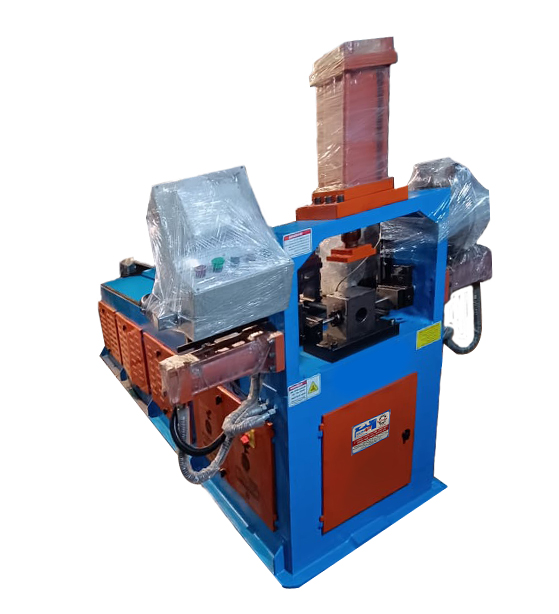

Automatic Slotted Square Pipe Punching Machine
Special Purpose Machines (SPM'S)The TL Pathak Group introduces its Automatic Slotted Square Pipe Punching Machine, a cutting-edge solution for efficient and precise punching of square pipes. This innovative machine is designed to streamline the manufacturing process with its advanced automation features. Equipped with state-of-the-art technology, it offers high-speed punching capabilities while maintaining accuracy and consistency. The machine's slotted design ensures precise alignment and reduces material waste, optimizing productivity and cost-effectiveness. Its user-friendly interface allows for easy operation and customization, catering to various punching requirements. With robust construction and reliable performance, the Automatic Slotted Square Pipe Punching Machine from TL Pathak Group is the ideal choice for industries seeking to enhance their production efficiency and quality standards.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel Name | TLPASSPP |
Body | Mild Steel Fabricated |
Electric Control | with PLC Mitsubishi Make |
Accuracy | +-0.10 mm |
Hydraulic Valve | Yuken Brand |
Oil Pump | Hydraulic power pack build with double Pump |
Electric Motor | 7.5 H.P. Crompton Make |
Saving Program | 100 + |
Maximum Angle Length | 6500 mm |
Punching Capacity | 6x65x65 mm |
Hydraulic Tank | 150 lit. (Without Oil) |
Electric Panel | 2 Nos. |
Cycle Time | 3 sec per hole including feed |
Pipe Clamping | By Hydraulic Cylinder |
Gear Box | Servo Motor 1 K.W. Planetory Gear Box |
HMI | Touch Screen 7” Mitsubishi or Fuji Make |
