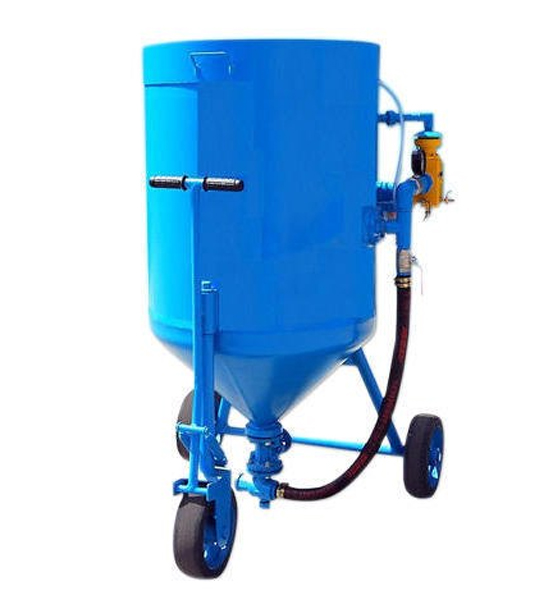

Portable Sand or Shot Blasting Machine
Shot Blasting MachinesThe portable sand or shot blasting machine by TL Pathak Group is a versatile and robust solution for surface preparation. Designed for efficiency, it features a compact and lightweight structure, making it easy to transport and operate in various industrial settings. The machine uses high-velocity abrasive materials, such as sand or steel shots, to clean, smooth, or roughen surfaces, effectively removing rust, paint, and other contaminants. It includes a high-performance blast nozzle and an adjustable pressure system to accommodate different blasting needs. Safety and durability are paramount, with features like a robust outer shell, efficient dust collection, and user-friendly controls ensuring long-term reliability and ease of use. Ideal for construction, automotive, and shipyard industries, this portable blasting machine offers exceptional performance and adaptability for both small-scale and large-scale projects.?
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | TLPSB P7 150 | TLPSB P7 300 & 300 R | TLPSB P7 500 & 500 R | TLPSB P7 1000 & 1000 R |
Abrasive Tank Capacity | Metal:150 kg,Sand<= 50 kg,Volume:42 ltr | Metal:300 kg,Sand:130 kg,Volume:85 ltr | Metal:500 kg,Sand:230 kg,Volume:142 ltr | Metal:1000 kg,Sand:460 kg,Volume:284 ltr |
Standard Blast Hose Length | 5 mtr | 5 mtr | 7.5 mtr | 10 mtr |
Blast Hose I.D. | 19 mm | 19 mm | 25 mm | 32 mm |
Blast Nozzle Orifice | 5/6 Tungsten Carbadie | 6 Tungsten Carbadie | 6/8 Tungsten Carbadie | 9.5 mm Boron Carbadie |
Approx Cleaning Rate | 1111 mmx361 mmx95 kg | 1291 mmx461 mmx141 kg | 1321 mmx521 mmx192 kg | 1611 mmx761 mmx95 kg |
Air Filter,Pressure Gauge,Auto Exhaust Valve and Pinch Valve | 1 No. Each | 1 No. Each | 1 No. Each | 1 No. Each |
Overall Dimension (HxDxW) | 4-7 sq. mtr./Hr. | 5-9 sq. mtr./Hr. | 9-12 sq. mtr./Hr. | 12-21 sq. mtr./Hr. |
Compressed Air (80 PSI) | 60 cfm | 85 cfm | 113 cfm | 217 cfm |
