Automatic Wire Nail Making Machine

Wire Industry Machinery

Our automatic wire nail making machine is the best machine for producing different types of nails. It has galvanized wire present in it. This machine has a wide range of applications in constructions, buildings , office furniture etc. It can even produce nails in HB or of steel material. The average speed of this machine is almost 300-350 nails per minute.

Wire Nail Machine is a continuous Nail Manufacturing Process Where in the Galvanized Wire Passed into Machine Mould and Nail Cutter Then Hammer Can shape in Nail Head and Finished nail can automatically drop down. The galvanized wire is pass through bearing and then pass in machine die and made nails head then nail cutter pair and touch in wire and cut nails properly which you can set nails size and thickness and after that nails can automatic produce and drop down into floor area. While nail can be manufacturing complete you need to polish it so you have to polished your nail in polishing drum in 20-25 minute and after that nail is complete ready for use. Common nails finds wide application in building, construction,office furniture appliance and many more. A Nail making Machine can produce any type of nails in galvanized, HB or mild steel material. MS and Galvanized are the most regulular materials used in the nail making machine working process. One nail making machine can produce 1 to 4 inches nails and 8 to 12 gauges nail and machine speeds average 300-350 nails produce in per minute.

Send Enquiry

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-9124009247 OR Call Me Back
MODEL
CAPACITY
WIRE
NAIL
PER MINUTE
H.P. REQ.
& R.P.M
NET WEIGHT
OF MACHINE
PWN-1A 1 1/4'' - 1'' 20-17swg 500-550 1 x 1440 225 KG
PWN-1 1/2''- 1 1/2'' 18-14swg 400-450 1 1/2 x 1440 350 KG
PWN-2 1/2'' - 2'' 16-12swg 300-350 2 x 1440 500 KG
PWN-3 3/4'' - 3'' 14-9swg 225-275 3 x 1440 850 KG
PWN-4 1'' - 4'' 12-8swg 175-210 5 x 1440 1200 KG
PWN-5 2'' - 6'' 8-4swg 100-125 7 1/2 x 960 1800 KG
PWN-8 2'' - 8'' 8-2swg 90-100 10 x 960 2400 KG

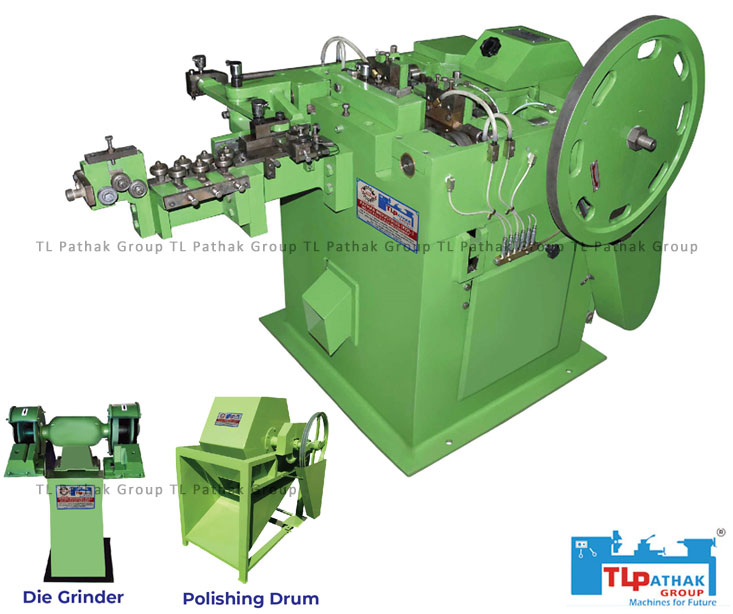

Wire Nail Making Machine Image 1

Wire Nail Making Machine Image 2
