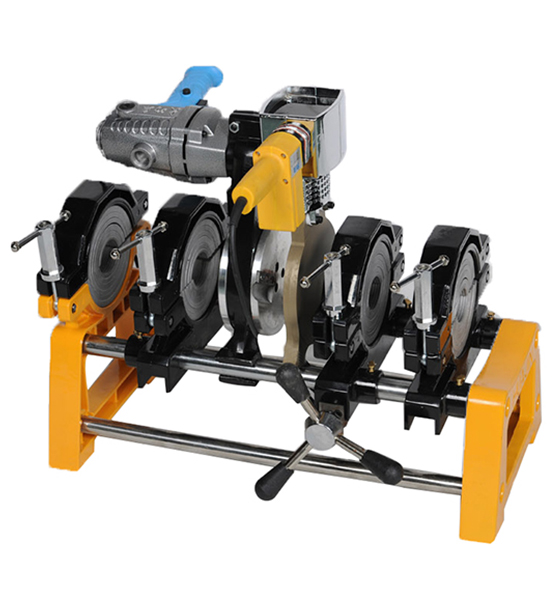

HDPE Pipe Welding Machine 160 mm
HDPE - Pipe Jointing MachineOur team has gained the trust of all our customers with many positive reviews for providing the best machines to them. All of our experts test and check the machines before delivering them to the customers. This machine is made to weld the plastic pipes and fittings that are made from PE, PP, and PVDF. The prices of our machines are under the range as we did not charge any extra cost for maintenance and installation.
From ₹
65,000
To
88,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me BackModel | PHDP160M | PHDP200M | PHDB250M |
Clamps | 4 Clamps | 4 Clamps | Clamps |
Welding Range (mm) | 50,63 ,75,90,110,125 140,160 | 63,75,90,110,125,140 160.180.200 | 63,75,90,110,125,14 160,180.200.225.250 |
Heating Plate Max Temp | 2700C | ||
Temp. Deviation Surface | +-500 | ||
Working Voltage | 220 V 50HZ | ||
Heating Plate Power | 1.0KW | 1.60KW | 2.0KW |
Planning Tool Power | 1.0KW | ||
3.0KW | |||
Pressure Adjustable Range | 0.6to3MPa | ||
Weight | 45 kg / 35 k9 | 55 kg / 45 kg | 90 kg / 60 kg |
