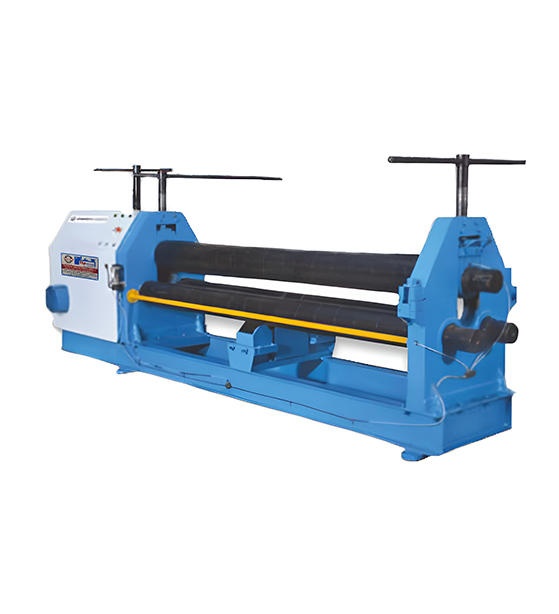

Mechanical Plate Rolling Machine
Sheet Metal MachinesThe TL Pathak Group offers a cutting-edge Mechanical Plate Rolling Machine designed for precision and efficiency in metal fabrication. This robust machine utilizes advanced mechanical technology to bend metal plates with remarkable accuracy and consistency. Featuring a sturdy frame and powerful mechanical components, it ensures durability and high-performance in various industrial applications. The machine is equipped with user-friendly controls, allowing operators to easily adjust settings for different plate thicknesses and achieve desired curvature. With a focus on quality and reliability, TL Pathak's Mechanical Plate Rolling Machine exemplifies their commitment to delivering cutting-edge solutions for metal forming processes, making it an ideal choice for businesses seeking efficient and reliable plate rolling capabilities in their manufacturing operations.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | Length | Max Thickness (MS.) | Max Thickness (SS.) | Top Roll Diameter | Bottom Roll Diameter | Power H.P. |
| MPBD-0615 | 1550 mm | 6 mm | 4 mm | 120 mm | 100 mm | 5 |
| MPBD-1015 | 1550 mm | 10 mm | 6 mm | 160 mm | 130 mm | 5 |
| MPBD-1215 | 1550 mm | 12 mm | 8 mm | 180 mm | 150 mm | 7.5 |
| MPBD-1615 | 1550 mm | 16 mm | 12 mm | 200 mm | 160 mm | 10 |
| MPBD-2015 | 1550 mm | 20 mm | 14 mm | 220 mm | 180 mm | 12.5 |
| MPBD-2515 | 1550 mm | 25 mm | 18 mm | 240 mm | 200 mm | 15 |
| MPBD-3015 | 1550 mm | 30 mm | 24 mm | 260 mm | 225 mm | 15 |
| MPBD-0620 | 2100 mm | 6 mm | 4 mm | 140 mm | 115 mm | 5 |
| MPBD-1020 | 2100 mm | 10 mm | 6 mm | 180 mm | 150 mm | 7.5 |
| MPBD-1220 | 2100 mm | 12 mm | 8 mm | 200 mm | 160 mm | 10 |
| MPBD-1620 | 2100 mm | 16 mm | 12 mm | 220 mm | 180 mm | 15 |
| MPBD-2020 | 2100 mm | 20 mm | 15 mm | 240 mm | 200 mm | 20 |
| MPBD-2520 | 2100 mm | 25 mm | 18 mm | 260 mm | 210 mm | 20 |
| MPBD-3020 | 2100 mm | 30 mm | 22 mm | 300 mm | 240 mm | 25 |
| MPBD-4020 | 2100 mm | 40 mm | 30 mm | 340 mm | 280 mm | 30 |
| MPBD-5020 | 2100 mm | 50 mm | 36 mm | 380 mm | 310 mm | 40 |
| MPBD-0625 | 2600 mm | 6 mm | 4 mm | 170 mm | 140 mm | 7.5 |
| MPBD-1025 | 2600 mm | 10 mm | 4 mm | 200 mm | 160 mm | 10 |
| MPBD-1225 | 2600 mm | 12 mm | 8 mm | 220 mm | 180 mm | 10 |
| MPBD-1625 | 2600 mm | 16 mm | 12 mm | 240 mm | 200 mm | 15 |
| MPBD-2025 | 2600 mm | 20 mm | 15 mm | 280 mm | 230 mm | 20 |
| MPBD-2525 | 2600 mm | 25 mm | 18 mm | 300 mm | 240 mm | 25 |
| MPBD-3025 | 2600 mm | 30 mm | 22 mm | 320 mm | 260 mm | 30 |
| MPBD-3525 | 2600 mm | 35 mm | 26 mm | 340 mm | 270 mm | 30 |
| MPBD-4025 | 2600 mm | 40 mm | 30 mm | 380 mm | 310 mm | 30 |
| MPBD-4525 | 2600 mm | 45 mm | 35 mm | 400 mm | 330 mm | 40 |
| MPBD-5025 | 2600 mm | 50 mm | 38 mm | 420 mm | 350 mm | 40 |
| MPBD-6025 | 2600 mm | 60 mm | 45 mm | 450 mm | 380 mm | 50 |
| MPBD-0830 | 3100 mm | 8 mm | 5 mm | 200 mm | 160 mm | 50 |
| MPBD-1030 | 3100 mm | 10 mm | 6 mm | 220 mm | 180 mm | 10 |
| MPBD-1230 | 3100 mm | 12 mm | 8 mm | 240 mm | 200 mm | 15 |
| MPBD-1630 | 3100 mm | 16 mm | 12 mm | 260 mm | 210 mm | 15 |
| MPBD-2030 | 3100 mm | 20 mm | 15 mm | 300 mm | 240 mm | 20 |
| MPBD-2530 | 3100 mm | 25 mm | 18 mm | 320 mm | 260 mm | 25 |
| MPBD-3030 | 3100 mm | 30 mm | 22 mm | 350 mm | 280 mm | 30 |
| MPBD-3530 | 3100 mm | 35 mm | 26 mm | 380 mm | 310 mm | 40 |
| MPBD-4030 | 3100 mm | 40 mm | 30 mm | 400 mm | 320 mm | 40 |
| MPBD-4530 | 3100 mm | 45 mm | 35 mm | 420 mm | 340 mm | 40 |
| MPBD-5030 | 3100 mm | 50 mm | 38 mm | 450 mm | 380 mm | 50 |
| MPBD-6030 | 3100 mm | 60 mm | 45 mm | 480 mm | 400 mm | 50 |
