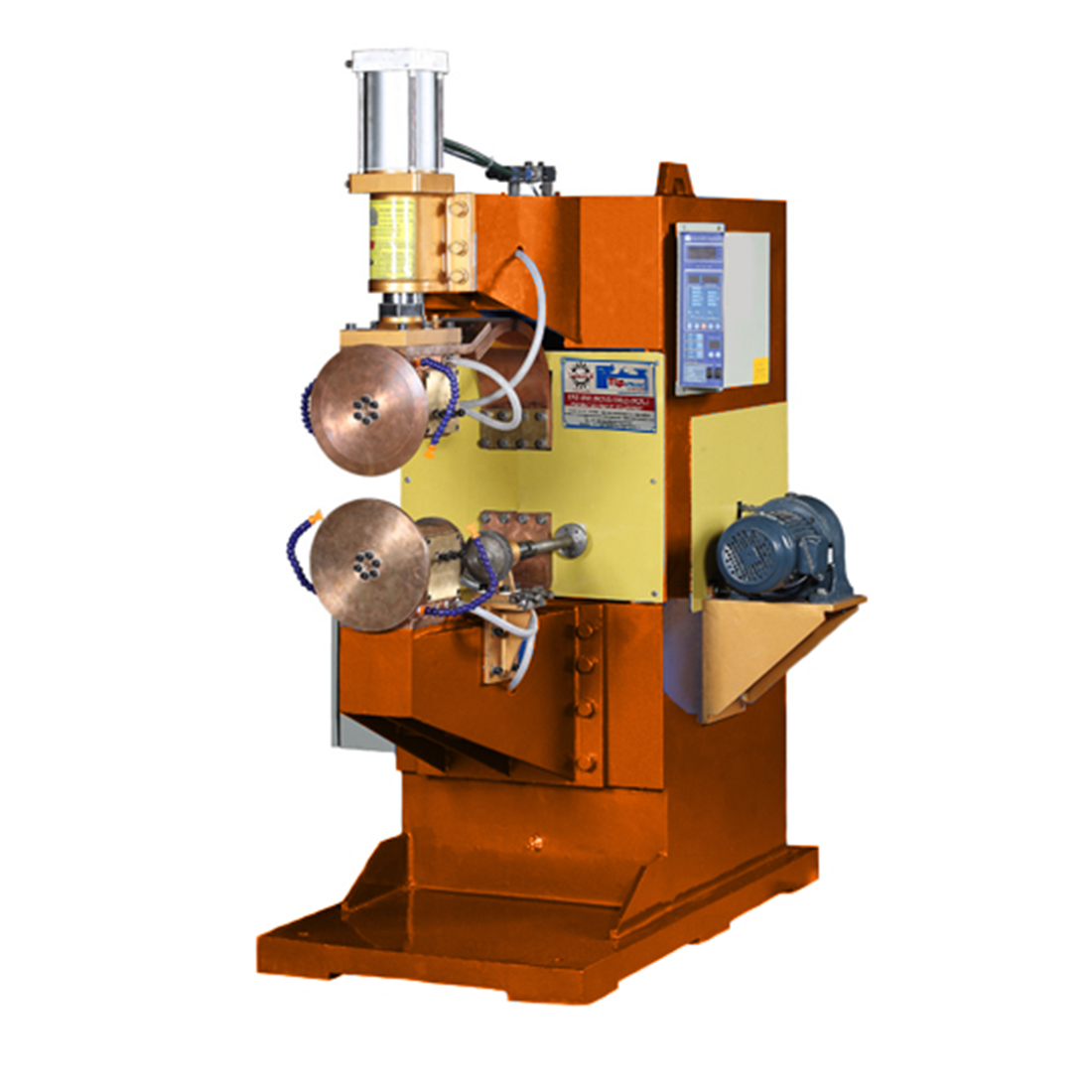

Seam Welder
Welding EquipmentsTL Pathak Group presents its Seam Welder, a cutting-edge solution for efficient and precise seam welding operations. Crafted with precision engineering, this machine ensures high-quality seam welds, catering to diverse industrial applications. The Seam Welder features user-friendly controls, enabling operators to easily manage and adjust welding parameters.
Seam Welder accommodates different material thicknesses and welding requirements, providing seamless and efficient welding experiences. The robust construction and high-quality components contribute to durability and longevity in demanding industrial environments. This welding machine exemplifies TL Pathak Group's commitment to delivering advanced and reliable solutions for seam welding applications, addressing the diverse needs of the manufacturing sector with precision and efficiency.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-9124009247 OR Call Me Back
| Model | TLPSW-50 | TLPSW-75 | TLPSW-100 | TLPSW-150 | TLPSW-200 |
| Input Supply | 415±15% | 415±15% | 415±15% | 415±15% | 415±15% |
| Phase | 2 (2 Lines of 3 Phase) | 2 (2 Lines of 3 Phase) | 2 (2 Lines of 3 Phase) | 2 (2 Lines of 3 Phase) | 2 (2 Lines of 3 Phase) |
| Nominal rating @ 50% duty cycle | 50 KVA | 75 KVA | 100 KVA | 150 KVA | 200 KVA |
| Throat depth standard | 460 mm | 460 mm | 610 mm | 610 mm | 610 mm |
| Throat gap (min) | 300 mm | 300 mm | 300 mm | 350 mm | 350 mm |
| Standard Stroke | 100 mm | 100 mm | 100 mm | 150 mm | 150 mm |
| Switch fuse | 125 amp | 200 amp | 250 amp | 400 amp | 500 amp |
| Air pressure | 3-6 Kg/cm² | 3-6 Kg/cm² | 3-6 Kg/cm² | 4-8 Kg/cm² | 4-8 Kg/cm² |
| Electrode force at 5 kg/cm² | 450 KGF | 450 KGF | 450 KGF | 950 KGF | 950 KGF |
| Water supply at 2.5 kg/cm² | 20 lit/min | 30 lit/min | 40 lit/min | 50 lit/min | 60 lit/min |
| Upper electrode dia/thick | 250/12 mm | 250/12 mm | 250/16 mm | 250/16 mm | 250/16 mm |
| Air consumption/stroke (Max) | 1.6 lit | 1.6 lit | 1.6 lit | 1.6 lit | 3.5 lit |
| Drive Motor DC | 1 HP | 1 HP | 1.5 HP | 1.5 HP | 2 HP |
| Welding Capacity Mild Steel | 1+1 mm | 1.25+1.25 mm | 1.6+1.6 mm | 2+2 mm | 2.5+2.5 mm |
| Welding Capacity Stainless Steel | 0.8+0.8 mm | 1+1 mm | 1.25+1.25 mm | 1.6+1.6 mm | 2.0+2.0 mm |
| Normal working height | 900 mm | 900 mm | 900 mm | 900 mm | 900 mm |
| Dimensions (LxWxH) | 1900x900x1050 mm | 1900x900x1050 mm | 1900x900x1200 | 1900x900x1200 | 1900x900x1200 |
| Weight | 700 kg | 850 kg | 1100 kg | 1250 kg | 1250 kg |
